Safety controllers provide a high level of fail-safe operation for applications requiring such protection. Safety speed monitoring modules expand the capabilities of the MOSAIC modular safety controller by adding the ability to monitor speed of a motor or rotating machine by using proximity switches or encoders.

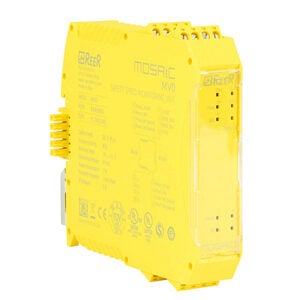

MOSAIC Safety Controller Speed Monitoring Modules
MOSAIC Safety Controller Communications Module
MOSAIC Safety Controller Modules
The unique MOSIAC safety controller system is modular, expandable and configurable for managing all safety functions of a single machine or an entire plant.
MOSAIC Speed Monitoring Module Features
- Speed monitoring inputs from encoders or proximity sensors
- Allows the monitoring of zero speed, max speed, speed range, and motion direction of potentially dangerous moving machinery
- Connection to M1 or M1S master module via MSC 5-way ReeR proprietary bus
- Removable terminal block plus screw contacts
- 35mm DIN rail mounting
Speed monitoring modules include models that support
- One or two TTL (line-driver) encoder inputs
- One or two HTL (push-pull) encoder inputs
- One or two SIN/COS encoder inputs
- All models are capable of monitoring two proximity sensor inputs
Starting at
$293.00
(MOSAIC-MV0)
For part listing and specifications, go to Shop Now
