Accessories for the MOSAIC safety controller include the MCS-C expansion connector for adding expansion modules to the MOSAIC master module, programming cables, and memory modules.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Safety Controller Accessories
- MOSAIC-MSC-C Connector
MSC-C Safety Communication Connector with terminal end caps (MSCPC). Permits communication between various system units. Required to connect any additional cards to the expandable MOSAIC master modules.- 5-way connector for communication among MOSAIC modules
- Comes in the box with all expansion modules and only needed for the master unit
- MOSAIC-MCM and MOSAIC-MCMB Memory cards
Proprietary removable memory cards can be used to save MOSAIC configuration data for subsequent transfer to a new device without using a PC. MOSAIC-MCM memory card is for use with MOSAIC-M1 and M1S master modules. MOSAIC-MCMB memory card is used with MOSIAC-M1S-USBC master module. - MOSAIC-CSU Cable
The CSU cable is an interconnection cable used to connect select master modules to a PC for programming with the MSD configuration software.- Type A USB connector on one end for connection to the PC
- Type B mini-USB connector on the other end for connection to the supporting master module
- 1.8 m (5.91 ft) length
For part listing and specifications, go to Shop Now
MOSAIC Safety Controller Accessories

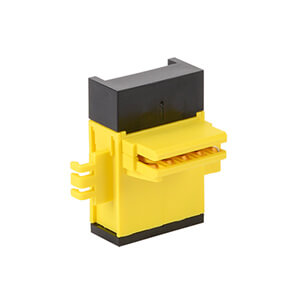

MOSAIC-MSC-C Connector
MSC-C Safety Communication Connector with terminal end caps (MSCPC). Permits communication between various system units. Required to connect any additional cards to the expandable MOSAIC master modules.
- 5-way connector for communication among MOSAIC modules
- Comes in the box with all expansion modules and is only needed for the master unit

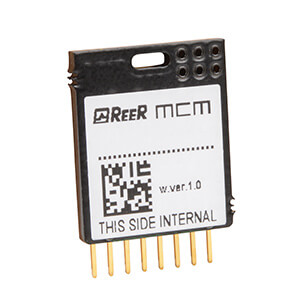

MOSAIC-MCM and MOSAIC-MCMB Memory cards
Proprietary removable memory cards can be used to save MOSAIC configuration data for subsequent transfer to a new device without using a PC. MOSAIC-MCM memory card is for use with MOSAIC-M1 and M1 S master modules. The MOSAIC-MCMB memory card is used with the MOSAIC-M1 S-USBC master module.

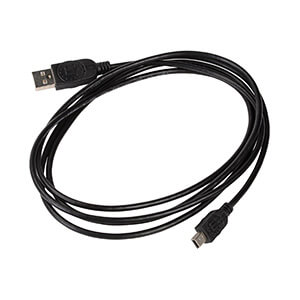

MOSAIC-CSU Cable
The CSU cable is an interconnection cable used to connect select master modules to a PC for programming with the MSD configuration software.
- Type A USB connector on one end for connection to the PC
- Type B mini-USB connector on the other end for connection to the supporting master module
- 1.8 m (5.91 ft) length
