Speed monitoring safety relays provide overspeed, underspeed or window monitoring for single- or three-phase motors, by monitoring external proximity sensors mounted on a rotating element of the motor or load.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Speed Monitoring Safety Relays
Speed monitoring relay modules use inputs from proximity sensors mounted on a moving element of a motor or other load to detect overspeed or underspeed, or monitor within a window. Certain relays also support standstill monitoring.
For part listing and specifications, go to Shop Now
Dold BH5932 Speed Monitoring Relay Modules
- Energized when speed is under setting value
- Two PNP sensor inputs
- Adjustable range
- Monitors rotation and linear movement
- 2-channel operation for standstill and over-speed monitoring
- 2 N.O. and 1 N.C. positive-guided contacts
- LED status indicators
- Fixed screw terminals
Priced at
(BH5932-22-113-24)

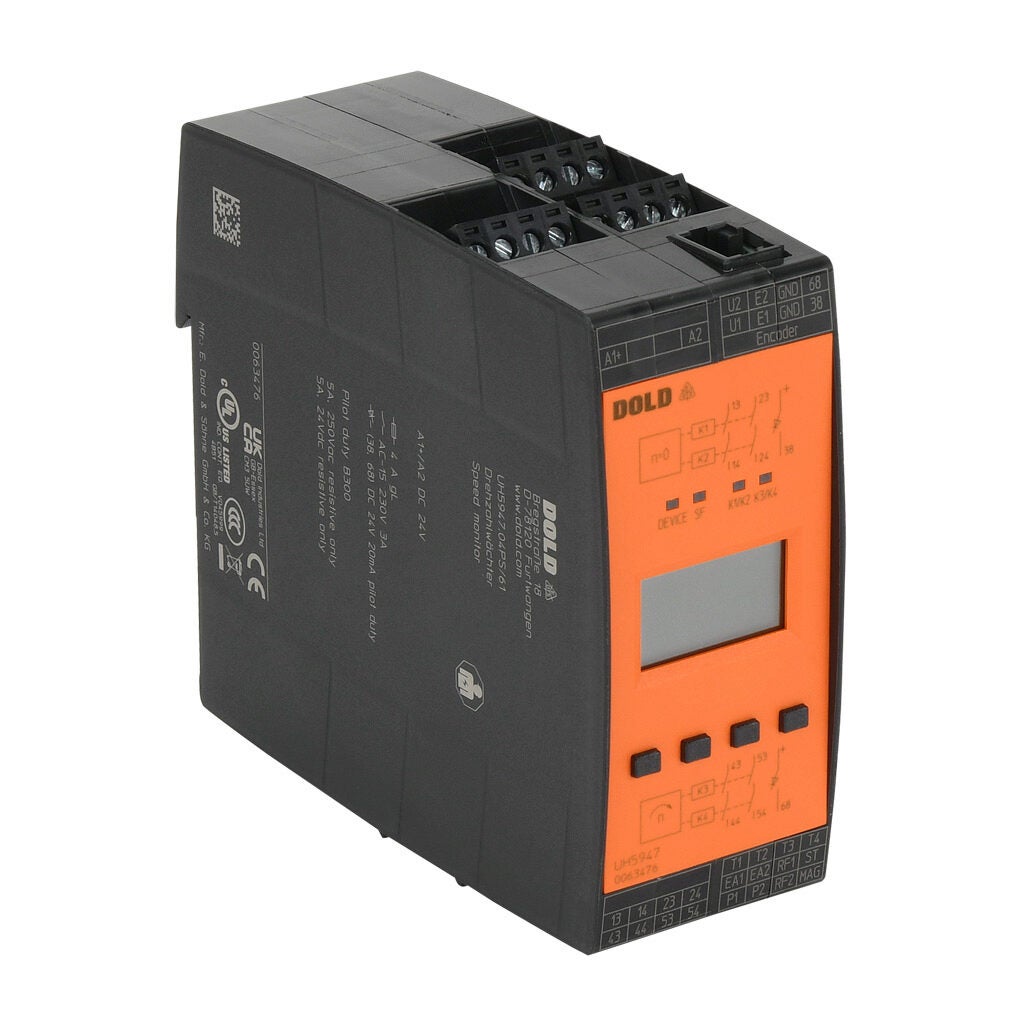

Dold UH5947 Combination Motor Standstill/Speed Monitoring Relay Modules
- Speed monitoring models include PNP/NPN inputs or NAMUR sensor inputs
- Independent of direction
- Broken wire detection
- 2-channel operation for standstill and over-speed monitoring or speed monitoring
- 4 N.O. positive-guided safety contacts
- 2 status monitoring outputs
- LED status indicator
- Adjustable voltage setting for standstill monitoring
- Adjustable standstill time delay
- Control voltages of 24VDC or 110-240VAC
- Pluggable screw terminals or push-in cage clamps, depending on model
Starting at
(UH5947-04PS24)
Dold UH6932 Speed Monitoring Relay Modules
- Two PNP or NPN sensor inputs
- Adjustable range
- Monitors rotation and linear movement
- 2 N.O. positive-guided and 2 semiconductor monitoring outputs
- Front side display for parameter readouts and adjustments LED status indicators
- Time delay settings available
- Pluggable screw terminals
Priced at
(UH6932-02PS-24)
