> Motors > AC Motors > Brake Motors
  •   Shop
  •   Overview
Brake Motors
Brake AC Motors

Brake motors have a brake assembly connected to the motor for fast stopping and holding of a load. These general-purpose and inverter-rated motors can be used for loads such as metering belts, incline/decline conveyors and industrial elevators. Brake voltage is applied to release the brake.

Stride Interactive Product Tour Request
Company Name:
Last Name:
First Name:
Business Email:
Country:
Job Title:
Category Selections
General Purpose and Inverter Rated
General Purpose and Inverter Rated
Newest Additions!
Open Drip Proof
Open Drip Proof
Newest Additions!
High-Performance Inverter Duty
High-Performance Inverter Duty
Newest Additions!
Washdown
Washdown
Newest Additions!
Severe Duty
Severe Duty
Newest Additions!
IEC
IEC
Newest Additions!
Brake Motors
Brake Motors
Newest Additions!
Permanent Magnet AC (PMAC)
Permanent Magnet AC (PMAC)
Newest Additions!
Centrifugal Jet Pump
Centrifugal Jet Pump
Newest Additions!
Conveyor/Farm Duty
Conveyor/Farm Duty
Newest Additions!
AC Motors Accessories
AC Motors Accessories
Newest Additions!
Shop Now

Brake Motors

Category Selection

  • M.G.M Brake Motors
  • WEG Electric NEMA Brake Motors

Brake motors have a brake assembly connected to the motor for fast stopping and holding of a load. These motors are most commonly used for applications involving conveyors that need to stop quickly such as metering belts or loads that will be affected by gravity such as incline/decline conveyors or industrial elevators. Applying voltage to the brake coil releases the brake, while removing voltage from the brake coil engages the brake.

For part listings and specifications, go to Shop Now

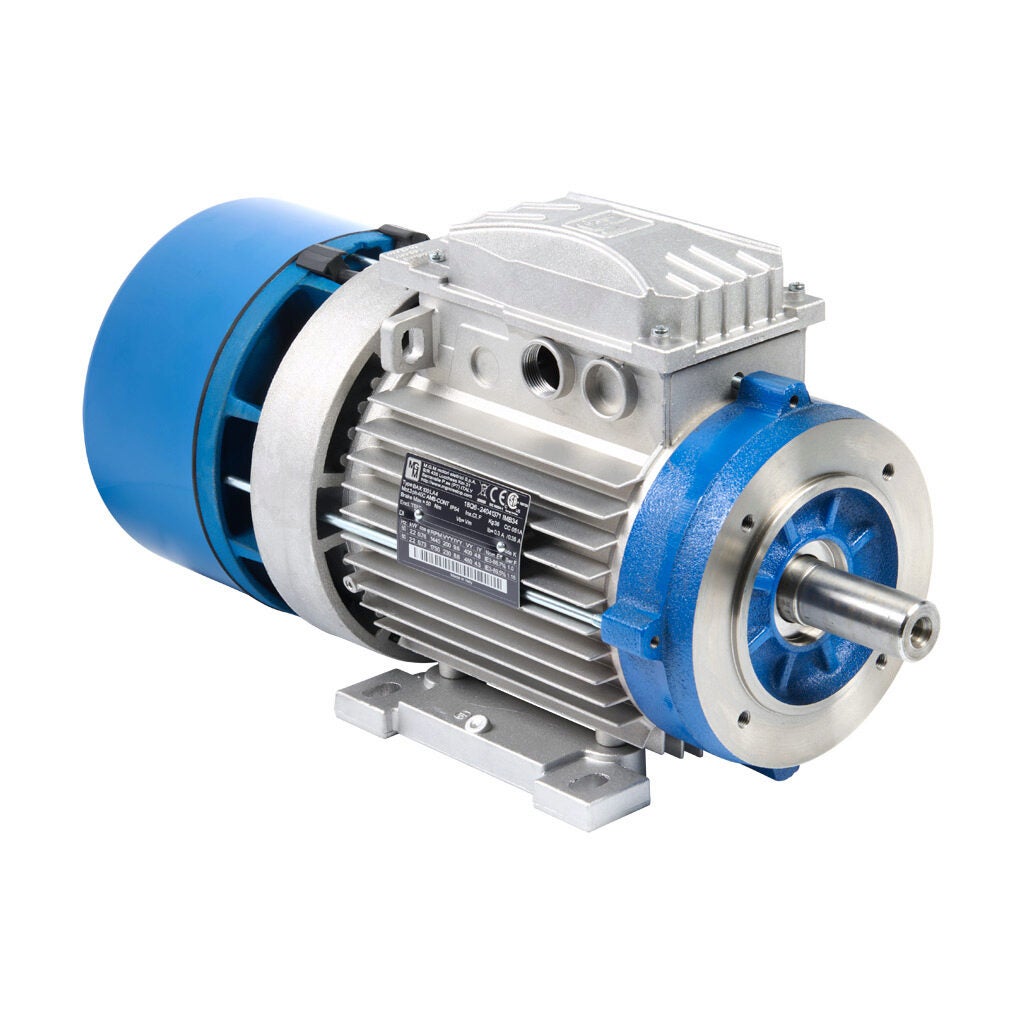

M.G.M Brake Motors

M.G.M Brake Motors

M.G.M. Electric's BAX and BMX series brake motors are designed to the IEC standard (select models support NEMA installation) and feature a strong and safe 3-phase brake. These cost-effective motors are built with light-weight aluminum and come in premium and high efficiency models.

  • 1/4 to 5 hp (0.18 to 3.7kW)
  • 1800rpm
  • Frame sizes: IEC 63 to 112
  • IEC and NEMA compatible mounting options: IEC mounts B5 and B34, NEMA mounts 56C to 182TC
  • Inverter speed ratings: constant torque 5:1, variable torque 1000:1
  • Continuous duty (S1)
  • Premium efficiency (IE3) frames 80 to 112, high efficiency (IE2) frame 63/71
  • Top mount junction box design, with threaded entries, provides greater terminal access
  • TEFC enclosure
  • Class F insulation
  • BAX series brakes are direct 3-phase AC coils (no DC rectifier) for superior braking performance vs standard brake motors (3x response time, 2x holding torque, better cooling)
  • BMX series 1/4hp features a 1-phase 230V brake with rectifier
  • IP54
  • Manual brake release
  • Ring lug terminals make wiring easy and secure
  • Aluminum construction for a 25% weight savings
  • Agency approvals: CE and CSA
  • Mounting orientation:
    • C-face - horizontal or vertical
    • Rigid base - horizontal only

Starting at
$515.00
(18HZ)

WEG Electric NEMA Brake Motors

WEG Electric NEMA Brake Motors

WEG Electric motors are well known for reliability and their standard efficiency brake motors will provide dependable operation for a variety of applications involving heavy loads and controlled stops.

  • 1/4hp to 20hp
  • 208-230/460 VAC
  • 1800rpm
  • Spring set, solenoid actuated AC brake - 230/460VAC
  • Manual release brake lever
  • Class F insulation
  • IP55 environmental rating
  • Frame sizes: NEMA 56 to 256
  • Rigid base, C-face rigid base or C-face footless mounting
  • TEFC enclosure
  • Matches well with WEG automation products: CFW series VFDs, SSW series soft starters, CWB series contactors, (P)ESW series enclosed starters.

Starting at
$783.00
(.2518ES3EBMW56CFL-S)
