Position switches offer a cost-effective interface between pneumatic actuators and electrical control systems. NITRA compact solid-state switches have no moving parts and are made to mount on 5mm T-slot cylinders (NITRA F-Series), round cylinders (NITRA A-Series, w/optional CPSB mounting bands) or tie-rod cylinders (NITRA D-series w/optional CPSA adapters).
NITRA™ Pneumatic Cylinder Position Switches/ Cylinder Sensors - CPS Series
NITRA Air Cylinder Switches - interfacing pneumatic actuators and electrical control systems
These electronic cylinder sensors offer superior performance and reliability at mechanical reed switch prices!
NITRA CPS Series cylinder switches are general purpose pneumatic switches for use with air cylinders having a magnetic piston. These IP67 rated cylinder position sensors are designed to mount on air cylinders with a T-Slot channel. Using CPSA Series adapters or CPSB Series mounting bands, these air cylinder switches can be used with tie rod cylinders or round body style pneumatic cylinders.
The NITRA CPS Series of pneumatic position switches offers a robust, yet cost-effective interface between pneumatic actuators and electrical control systems. Using state-of-the-art AMR magnetic sensing technology, these magnetic cylinder switches are designed for use with pneumatic cylinders that have a magnet incorporated in the cylinder piston.
These cylinder sensors can be used to provide cylinder position indication, cycle count or to confirm operation. Pre-tested for use with NITRA pneumatic cylinders, these cylinder switches are also suitable for use with other brands of pneumatic cylinders with magnetic pistons.
NITRA CPS series pneumatic cylinder position sensors are priced from
$23.00
(CPS-AP-A)

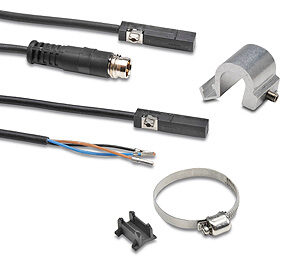

NITRA CPS Series Cylinder Switches Overview
Features
- Electronic switch output, PNP or NPN, normally open and normally closed
- Solid state reliability, no moving parts for longer life
- AMR sensing technology with small hysteresis for precise sensing
- Compact and easy to mount on round body or T-slot pneumatic cylinders
- LED switch status indication
- Available with an M8 wiring connector or 2-meter integral cable with wire leads
- Electronic cylinder switch performance at mechanical reed switch prices
Accessories
- NITRA Pneumatics cylinder switch mounting adapters are made of extruded aluminum and are used to mount CPS or CPSF series T-slot cylinder switches to tie rod style cylinders. Available in five sizes to fit tie rods from 1/8 inch [3mm] to 3/4 inch [20mm].
- Mounting bands to secure T-slot cylinder position switches to round body air cylinders
NITRA™ Pneumatic Cylinder Position Switches/Sensors
| PART NUMBER | DESCRIPTION | PRICE |
|---|---|---|
| CPS-AP-F | NITRA pneumatic cylinder magnetic position sensing switch; normally open, 3-wire, 10-30 VDC, electronic PNP transistor output; status LED; 0.3 meter (0.98 ft) cable with M8 snap-fit connector. Can be mounted on air cylinders with T-slots or round body cylinders using a CPSB series mounting band. | $24.00 |
| CPS-CP-F | NITRA pneumatic cylinder magnetic position sensing switch; normally closed, 3-wire, 10-30 VDC, electronic PNP transistor output; status LED; 0.3 meter (0.98 ft) cable with M8 snap-fit connector. Can be mounted on air cylinders with T-slots or round body cylinders using a CPSB series mounting band. | $24.00 |
| CPS-AN-F | NITRA pneumatic cylinder magnetic position sensing switch; normally open, 3-wire, 10-30 VDC, electronic NPN transistor output; status LED; 0.3 meter (0.98 ft) cable with M8 snap-fit connector. Can be mounted on air cylinders with T-slots or round body cylinders using a CPSB series mounting band. | $24.00 |
| CPS-AP-A | NITRA pneumatic cylinder magnetic position sensing switch; normally open, 3-wire, 10-30 VDC, electronic PNP transistor output; status LED; 2 meter (6.56 ft) cable with wire leads. Can be mounted on air cylinders with T-slots or round body cylinders using a CPSB series mounting band. | $23.00 |
| CPS-CP-A | NITRA pneumatic cylinder magnetic position sensing switch; normally closed, 3-wire, 10-30 VDC, electronic PNP transistor output; status LED; 2 meter (6.56 ft) cable with wire leads. Can be mounted on air cylinders with T-slots or round body cylinders using a CPSB series mounting band. | $23.00 |
| CPS-AN-A | NITRA pneumatic cylinder magnetic position sensing switch; normally open, 3-wire, 10-30 VDC, electronic NPN transistor output; status LED; 2 meter (6.56 ft) cable with wire leads. Can be mounted on air cylinders with T-slots or round body cylinders using a CPSB series mounting band. | $23.00 |
