Position switches offer a cost-effective interface between pneumatic actuators and electrical control systems, used to determine cylinder position, cycle count, or confirm operation. NITRA compact square solid-state switches have no moving parts and are made to mount on cylinders with 6.2mm x 3.2mm T-slots, such as NITRA G-series cylinders.

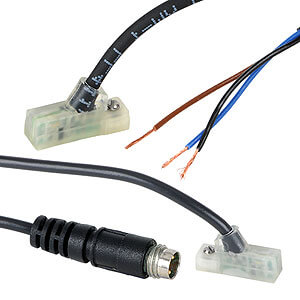

NITRA™ Pneumatic Cylinder Position Sensors - CPS9F Series
6.2 x 3.2 mm T-Slot Cylinder Switches
NITRA CPS9F Series cylinder position switches are general purpose switches for use with cylinders having a magnetic piston. The switches are designed to mount on cylinders with 6.2 x 3.2 mm T-slots.
The NITRA CPS Series of cylinder position switches offers a robust, yet cost-effective, interface between pneumatic or hydraulic actuators and electrical control systems. Using state-of- the-art magnetic sensing technology, these switches are designed for use with cylinders that have a magnet incorporated in the cylinder piston. They can be used to provide cylinder position indication, cycle count, or to confirm operation.
Features
- Compact and easy to mount on cylinders with 6.2 x 3.2mm T-slots
- Electronic switch output, PNP (normally open or normally closed) or NPN (normally open)
- Solid state reliability, no moving parts for longer life
- GMR sensing technology for basic industrial applications
- LED switch status indication
- Integral 0.15m cable with M8 snap-fit connector or 3-meter wire leads
- 5-28 VDC operating voltage
- NEMA 6 / IP 67 rating
- CE, RoHS, REACH approvals
- 3-year warranty
CPS9F Series cylinder position switches start at
$17.50
(CPS9F-AP-A)
CPS9F Series Air Cylinder Switches Overview
