NITRA™ Pneumatic Cylinder Position Sensors - CPS9C Series

4mm Round Slot Cylinder Switches

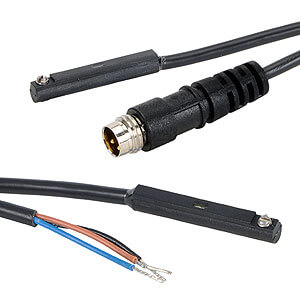

NITRA CPS9C Series cylinder position switches are general purpose switches for use with cylinders having a magnetic piston. The switches are designed to mount on cylinders with 4mm round slots. Position is fixed by using the supplied screw that is embedded in the switch body.

The NITRA CPS Series of cylinder position switches offers a robust, yet cost-effective, interface between pneumatic or hydraulic actuators and electrical control systems. Using state-of- the-art magnetic sensing technology, these switches are designed for use with cylinders that have a magnet incorporated in the cylinder piston. They can be used to provide cylinder position indication, cycle count, or to confirm operation.

Features

• Compact and easy to mount on cylinders with 4mm round slots
• Electronic switch output, PNP (normally open or normally closed) or NPN (normally open)
• Solid state reliability, no moving parts for longer life
• GMR sensing technology for basic industrial applications
• LED switch status indication
• Integral 0.15m cable with M8 snap-fit connector or 3-meter wire leads
• 5-28 VDC operating voltage
• NEMA 6 / IP 67 rating
• CE, RoHS, REACH approvals
• 3-year warranty
