Special Purpose Pneumatic Fittings
Pneumatic devices combined with convenient push-to-connect fittings create miniature versions of popular system components, including regulators, filters, gauges, switches, and various valve types. Special-purpose fittings can be permanent installations or for temporary use.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Pneumatic control and monitoring devices combined with convenient push-to-connect fittings create lightweight, miniature versions of many popular system components. Threaded versions of popular valve types are available for easy inline control of airflow and pressure. Special-purpose fittings can be plumbed into a machine either permanently or for low-cost troubleshooting or testing.
For part listing and specifications, go to Shop Now

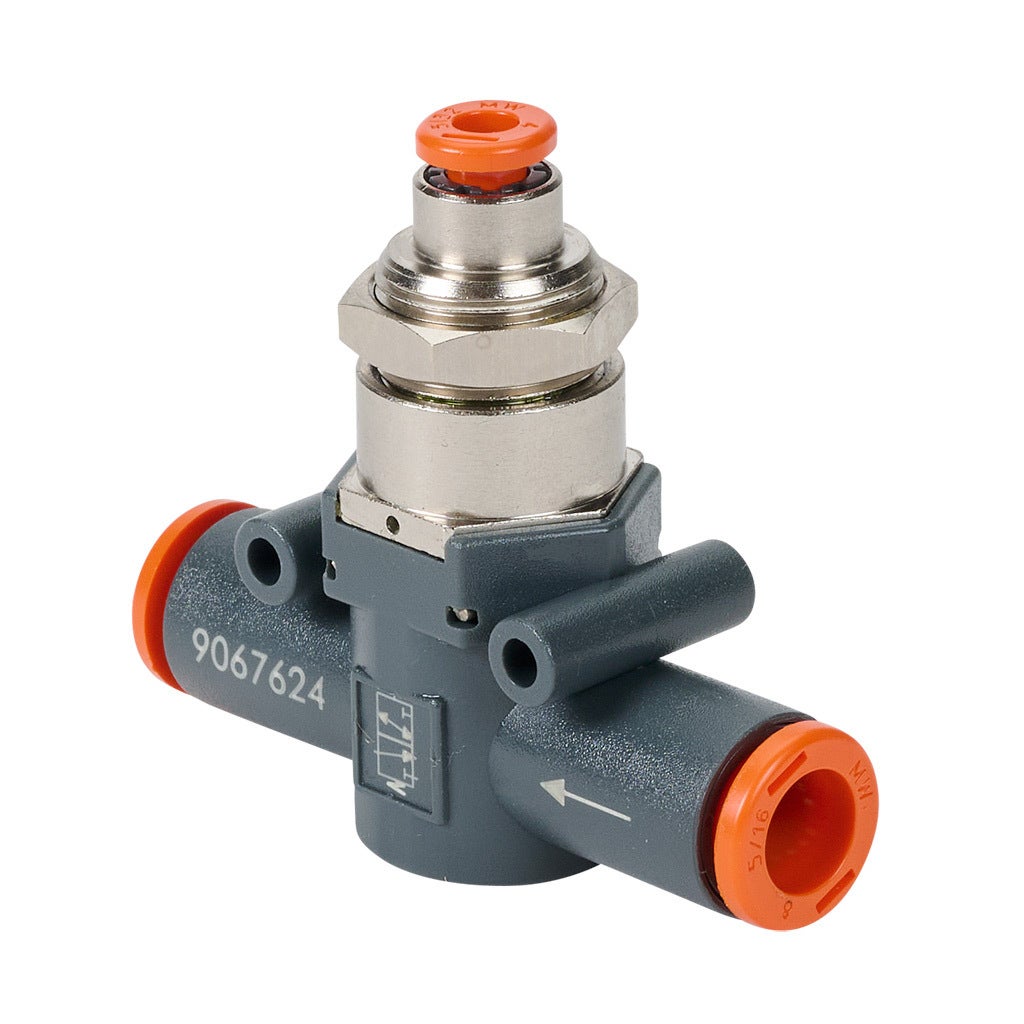

Check, Pilot, and Stop Fittings
Newest Additions!
- Metal Work pilot valve fittings
Check, pilot-operated check, stop, shuttle, and bleed fittings provide one-way flow, load holding, local isolation, signal selection, and pressure release within pneumatic circuits. Push-to-connect and threaded versions cover common inch and metric connections, allowing the required control function to be positioned close to an actuator, branch, or service point.
- Pilot-operated check valves combine a #10-32 pilot connection with 1/8in threaded or 1/4in push-to-connect working ports
- Union stop valves extend through 1/2in and 12mm, while shuttle and bleed valves provide compact threaded or push-to-connect pneumatic logic functions
Starting at
(CVU10N)
Quick-Exhaust and Shutoff Fittings
Newest Additions!
- Metal Work quick-exhaust valve and hand valve inline fittings
Quick-exhaust and shutoff fittings add local exhaust, isolation, or pneumatic switching directly within tubing runs. Quick-exhaust models cover 6mm through 3/8in connections and include standard or silenced exhaust configurations. Manual shutoff models provide two-way, three-way, and locking functions, while three-way normally closed pilot valves add remotely actuated switching.
- Three-way pilot models use 6 or 8mm main connections with a 5/32in (4mm) pilot connection
Starting at
(9063016)
Flow-Control Fittings
Newest Additions!
- Metal Work inline flow control valves
Flow-control fittings regulate actuator speed at the tubing run or actuator port. Inline models place adjustment directly between two push-to-connect tubes, while rotating elbow designs provide meter-in or meter-out control. Tubing connections extend from 1/8 to 1/2in and 4 to 12mm, with #10-32, M5 x 0.8, NPT, R (BSPT), and G (BSPP) threaded options depending on model.
- Meter-in models restrict supply airflow, while meter-out models regulate actuator exhaust and are selected according to the required speed-control method
Starting at
/ 2 pk.
(FVS532-10N)
Pressure Control and Monitoring Fittings
Newest Additions!
- Metal Work mechanical pressure switch and inline monitoring fittings
Inline pressure-control and monitoring fittings add regulation, indication, gauging, or switching directly within pneumatic tubing. Regulators provide adjustment ranges of 14.5 to 116 psi or 15 to 120 psi depending on model, while inline gauges cover 0 to 170 psi or 0 to 174 psi. Selection is primarily driven by required function, tubing size, and operating-pressure range.
- Mechanical pressure switches provide a 7.5 to 145 psig setpoint range, 5.8 to 11.6 psig deadband, and an SPDT 2A contact
- Inline pressure indicators operate from 29 to 145 psi, while pop-up indicators actuate at 5 psi
Starting at
(9068016)

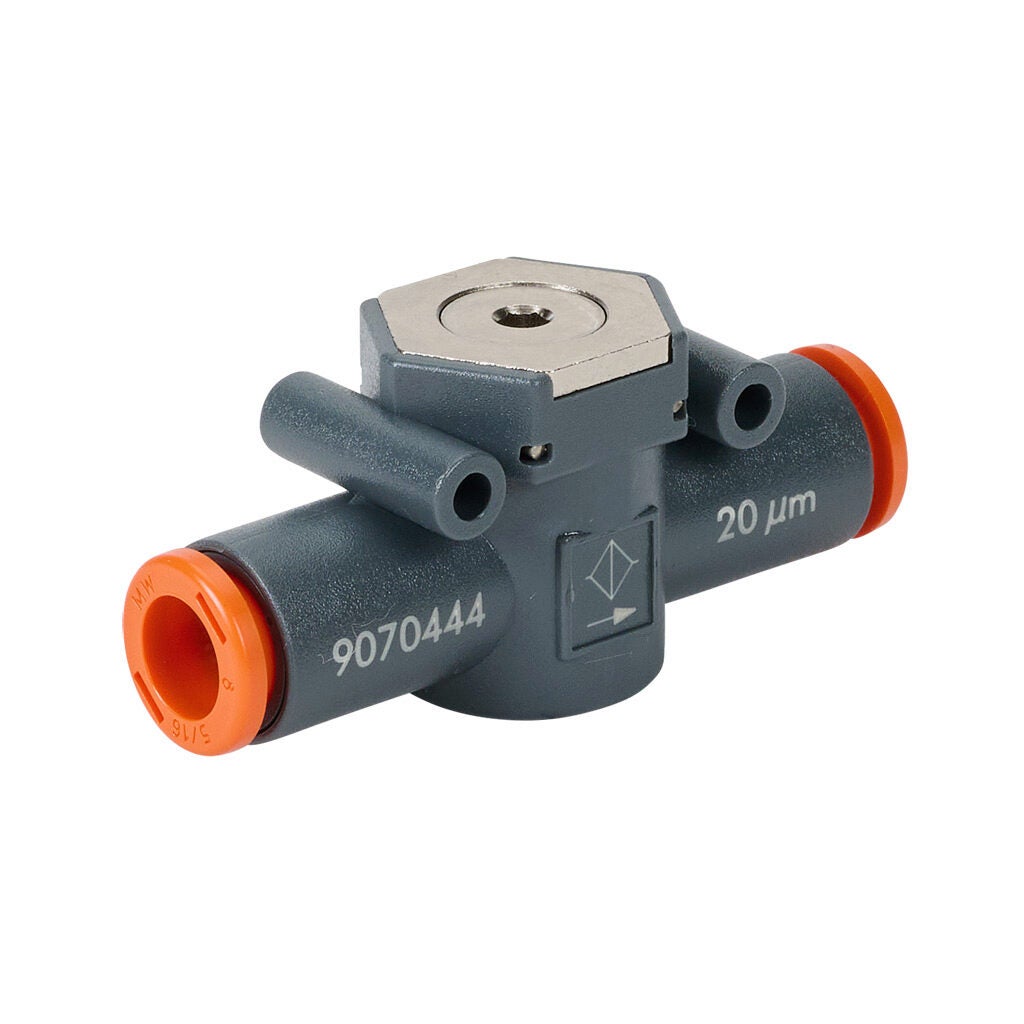

Line-on-Line Filters
New!
Line-on-Line filters provide particulate and moisture separation directly within a pneumatic tubing run without a separate threaded filter housing. Push-to-connect bodies support 5/16in (8mm) or 3/8in tubing, while replaceable 5-, 20-, and 50-micron elements allow filtration level to be selected according to downstream component and air-quality requirements.
Starting at
(9070444)
