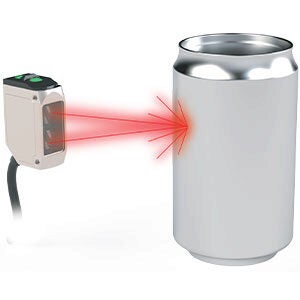

Diffuse photoelectric sensors consist of an emitter and receiver combined into a single compact housing. They sense presence, color, or contrast by emitting a light beam and sensing the light reflected directly from the target. They are easy to install and adjust but have short sensing distances.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Diffuse
Category Selection
Diffuse photoelectric sensors feature an integrated emitter and receiver in a single compact housing. These sensors detect presence, distance, color, or contrast by emitting a light beam and sensing the light reflected directly from the target. They offer reliable performance, simple installation, and easy adjustment, but their sensing distances are typically shorter.
For part listings and specifications, go to Shop Now
4 and 5mm Tubular
Contrinex 4mm smooth barrel and 5mm threaded barrel sensors feature rugged stainless steel housings and are perfect for applications requiring a small footprint.
- Sensing distances up to 120mm
- Light-on operating mode
- Visible red light emission
- IO-Link v1.0 on select PNP models
- 10 to 30 VDC operating voltage
- Axial cable or M8 quick-disconnect
- IP67 protection rating
Starting at
$75.00
(LTR-D04MA-NLK-301)

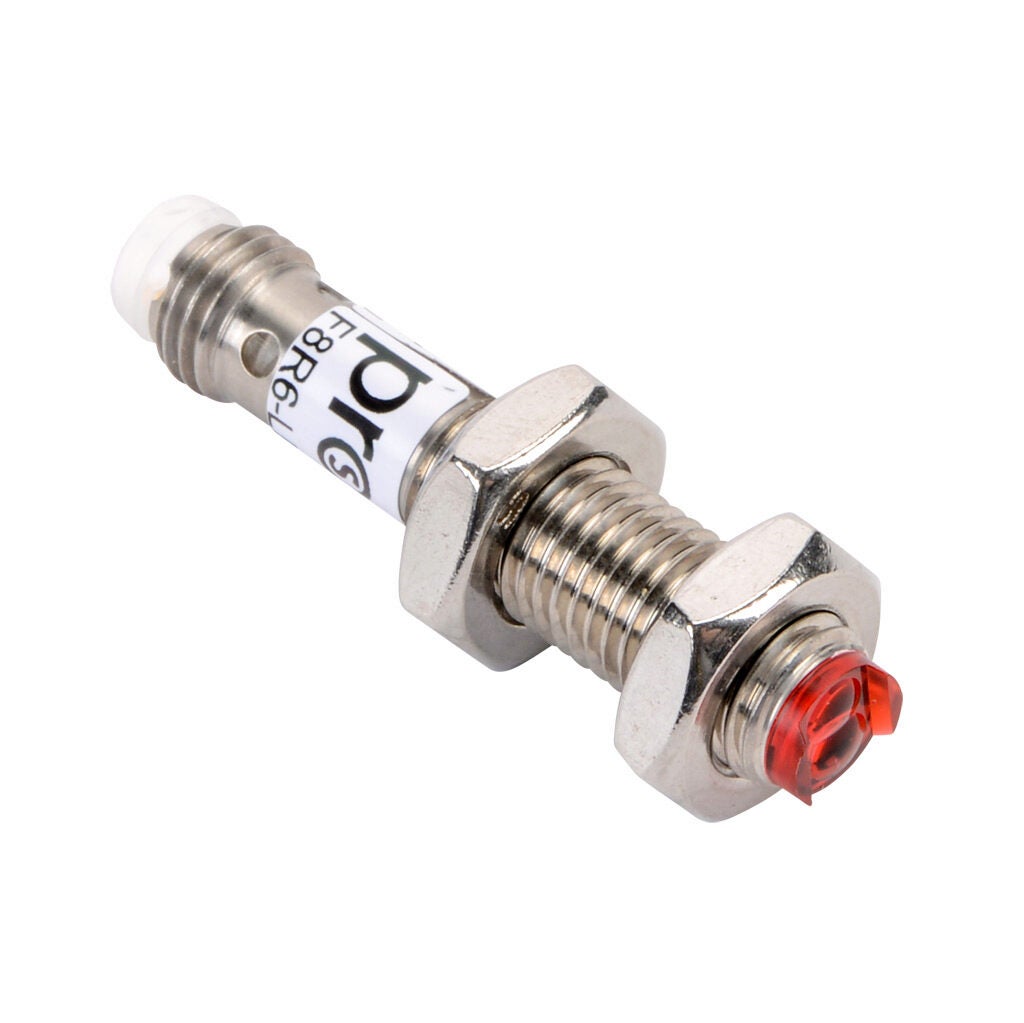

8mm Tubular
ProSense F8 series 8mm tubular sensors feature compact stainless steel housings suitable for small space applications.
- Sensing distances up to 60mm
- Light-on operating mode
- Visible red light emission
- 10 to 30 VDC operating voltage
- M8 quick-disconnect
- IP67 protection rating
Priced at
$101.00
(F8R6-LN-1F)
12mm Tubular
AchieVe and Contrinex 12mm tubular sensors offer rugged metal housings ideal for demanding industrial environments.
- Sensing distances up to 800mm
- Complementary light-on/dark-on and selectable light-on/dark-on operating modes
- Infrared and visible red light emission
- Contrinex sensors are made in the USA; their PNP models offer IO-Link v1.0 compatibility
- 10 to 30 VDC operating voltage
- Axial cable or M12 quick-disconnect
- IP67 protection rating
Starting at
$35.00
(FDM3-0N-1H)
18mm Tubular
Newest Additions!
- AchieVe FKL series 18mm tubular metal photoelectric sensors
18mm tubular photoelectric sensors offer performance and value for a wide range of applications and include models featuring 316L stainless steel housings, IP69K protection ratings for Food and Beverage applications, and options for dark and shiny object detection.
- AchieVe, AutomationDirect, Contrinex, and ProSense brands
- Sensing distances up to 1200mm
- Complementary light-on/dark-on, light-on, dark-on, and selectable light-on/dark-on operating modes
- Axial or right-angle optical head options
- Class 1 laser, infrared, or visible red light emission
- Plastic, metal, or stainless steel housing options
- Contrinex sensors are made in the USA; their PNP models offer IO-Link v1.0 compatibility
- AC or DC operating voltage options
- IP65, IP67, or IP68/69K protection ratings
Starting at
$23.00
(LTR-M18PA-PMK-603)
Rectangular
Newest Additions!
- Wenglor OPT25 series laser distance measurement photoelectric sensors
Rectangular photoelectric sensors offer accurate and reliable object detection partly due to their flat surfaces which allow for precise alignment and stable mounting. Select models employ triangulation laser technology to measure distances with extreme accuracy and offer our best-in-class distance sensing for ranges within 1 meter.
- AutomationDirect, Contrinex, Eaton, Leuze, Prosense, and Wenglor brands
- Sensing distances up to 10.1m
- Discrete, 4 to 20 mA, 0 to 10 VDC, or IO-Link output options
- Class 1 red laser, Class 2 red or blue laser, infrared, RGB, visible red light, or white light emission
- Class 2 blue laser models accurately sense dark and shiny objects
- Contrast sensors use RGB or white light for print mark detection
- Contrinex sensors are made in the USA and ECOLAB-approved for use in hygienic areas
- Stainless steel models are suitable for harsh duty and Food and Beverage applications
- AC or DC operating voltages
- Up to IP69K protection ratings
Starting at
$32.00
(LTR-C23PA-PMK-603)
Small Space Rectangular
Newest Additions!
- Autonics miniature photoelectric sensors
Autonics and ProSense small space rectangular photoelectric sensors feature compact housings that are easy to install in tight spaces. These robust sensors offer accurate sensing, fast response times, and high performance for challenging industrial applications.
- Sensing distances up to 60mm
- Offering ultra-thin sizes down to a 3.7mm thickness (4.6mm including lens)
- Ultra-slim models feature widths as narrow as 7.2mm
- Light-on or dark-on operating modes
- Visible red light emission
- 10 to 30 VDC or 10.6 to 26.4 VDC operating voltages
- 2m axial cable and M8 quick-disconnect styles
- Plastic or metal housings
- IP67 protection rating
Starting at
$79.00
(BTF30-DDTD)

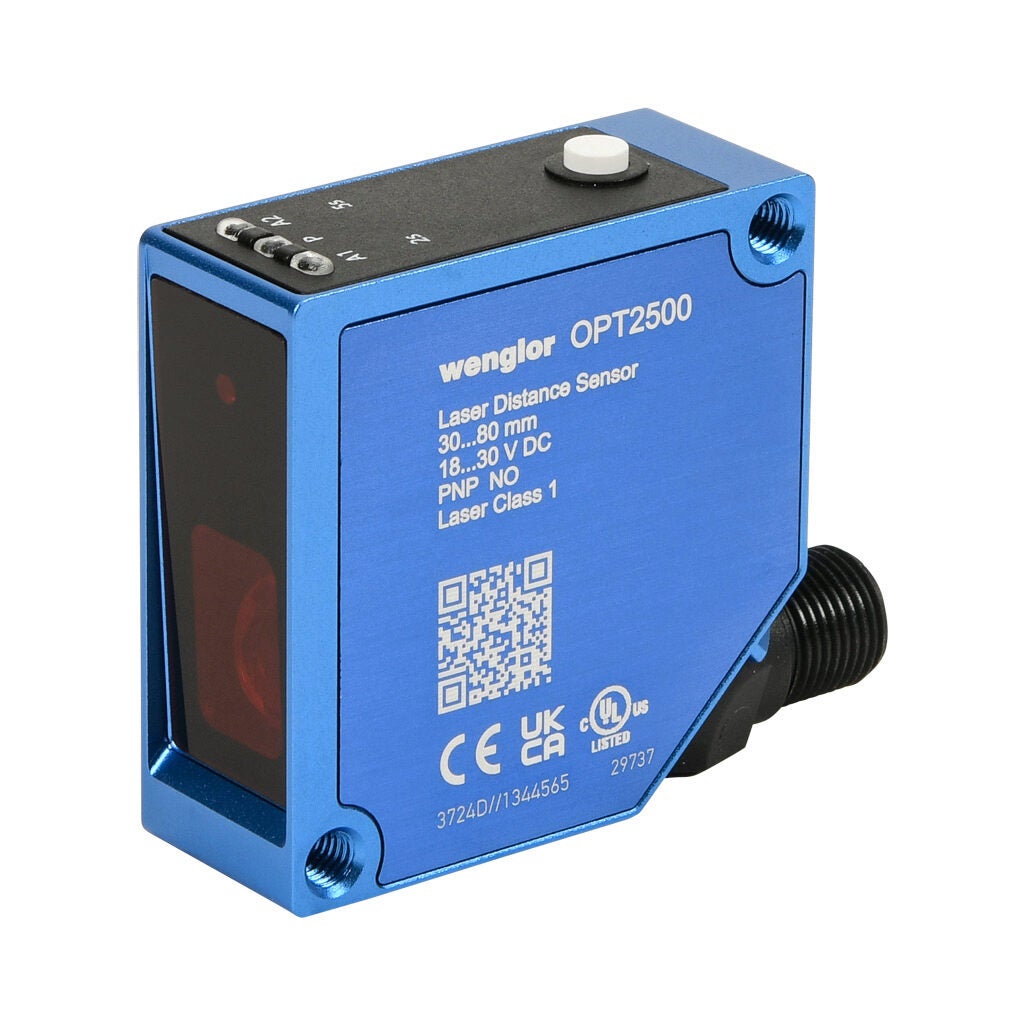

Square
Newest Additions!
- Wenglor OPT25 series laser distance measurement photoelectric sensors
Wenglor OPT series standard duty square photoelectric sensors provide a small spot diameter and are offered in sturdy plastic or polycarbonate housings. Select models employ triangulation laser technology to measure distances with extreme accuracy and offer our best-in-class distance sensing for ranges within 1 meter.
- Sensing distances up to 3m
- Class 1 red laser, Class 2 red or blue laser, and white light emission
- Discrete, 4 to 20 mA, 0 to 10 VDC, or IO-Link output options
- Class 2 blue laser models accurately sense dark and shiny objects
- White light models provide reliable color detection
- 10 to 30 VDC or 18 to 30 VDC operating voltages
- Aluminum, plastic, and polycarbonate housing options
- IP67 or IP68 protection ratings
Starting at
$372.00
(OPT2023)
