Pre-insulated power bars and in-line splicers/reducers accommodate two to four conductors in any of the following combinations: AL-AL, AL-CU, or CU-CU. They are suitable for use with aluminum or copper Class B and C stranded wire, as well as with copper Class G, H, I, K, and DLO stranded wire.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}

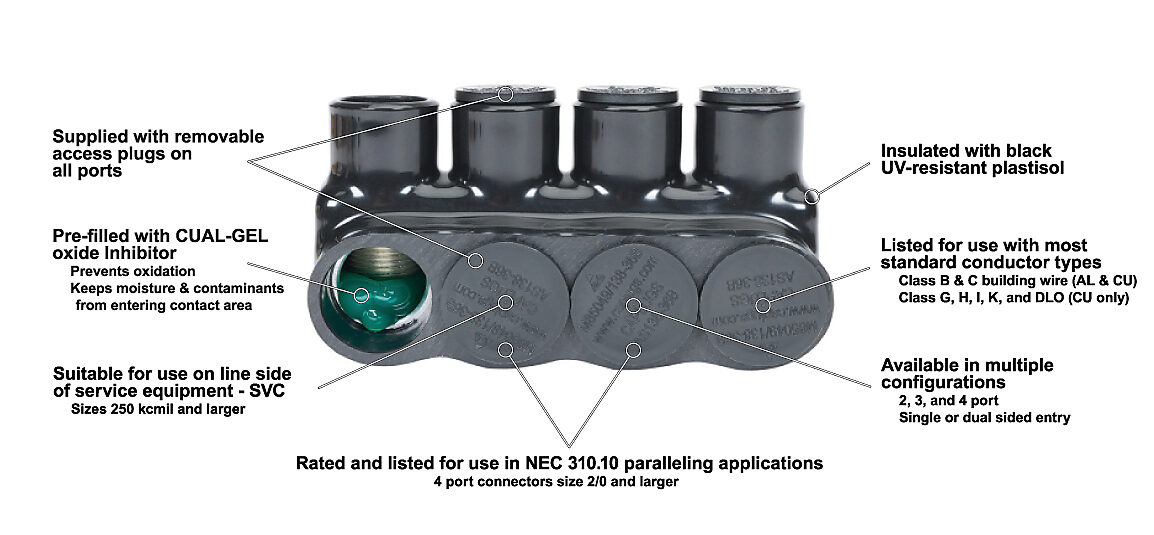

Pre-Insulated Power Bars
Delivering exceptional flexibility and performance, pre-insulated power bars and in-line splicers/reducers are engineered to handle two to four conductors in AL-AL, AL-CU, or CU-CU configurations. Designed for broad compatibility and with a rugged construction and dependable insulation, these connectors provide a clean, reliable solution for modern power distribution needs.
- Dual rated for aluminum and copper conductors (600V, 90 °C)
- Temperature rating of insulation: -40 to +135 °C
- Pre-filled with oxide inhibitor to prevent oxidation while keeping moisture and contaminants from entering the contact area
- Supplied with removable access plugs over screw and conductor ports for further protection against contaminants
- Pre-insulated at the factory with black UV-resistant high dielectric strength plastisol
- Saves time, eliminates taping, and reduces overall installation costs
- Abrasion and chemical resistant
For part listing and specifications, go to Shop Now
Pre-Insulated Power Bars
New!
Pre-insulated power bars, with single-side (IPBB-S models) or double-side (IPBB-D models) conductor entry, accommodate two to four conductors in any of the following combinations: AL-to-AL, AL-to-CU, or CU-to-CU. They are suitable for use with aluminum or copper Class B and C stranded wire, as well as with copper Class G, H, I, K, and DLO flexible stranded wire. These power bars are suitable for use in panelboards, cable trays, raceways, ducts, and troughs. They allow flexibility in the field and allow a reduction in the number of connectors that must be kept in inventory.
- Wide conductor range: 600 kcmil to 14 solid
- Sizes 250 kcmil and larger are suitable for use on the line side of service equipment (SVC)
- Multiple conductor configurations (2, 3, and 4 ports)
Starting at
(IPBB-NA4-2S-1)
In-Line Splicers/Reducers
New!
In-line splicers/reducers accommodate two conductors in any of the following combinations: AL-to-AL, AL-to-CU, or CU-to-CU. They are suitable for use with aluminum or copper Class B and C stranded wire, as well as with copper Class G, H, I, K, and DLO flexible stranded wire. Manufactured from high-strength aluminum, they are suitable for use in cable trays, raceways, ducts, and troughs. These splicers/reducers allow flexibility in the field, reduce installation time, and allow a reduction in the number of connectors that must be kept in inventory.
- Wide conductor range: 500 kcmil to 14 solid
- Sizes 1/0 and larger are suitable for use on the line side of service equipment (SVC)
- Multiple conductor configurations (2, 3, and 4 ports)
Starting at
(IISRB-2-1)
