Split Bolts

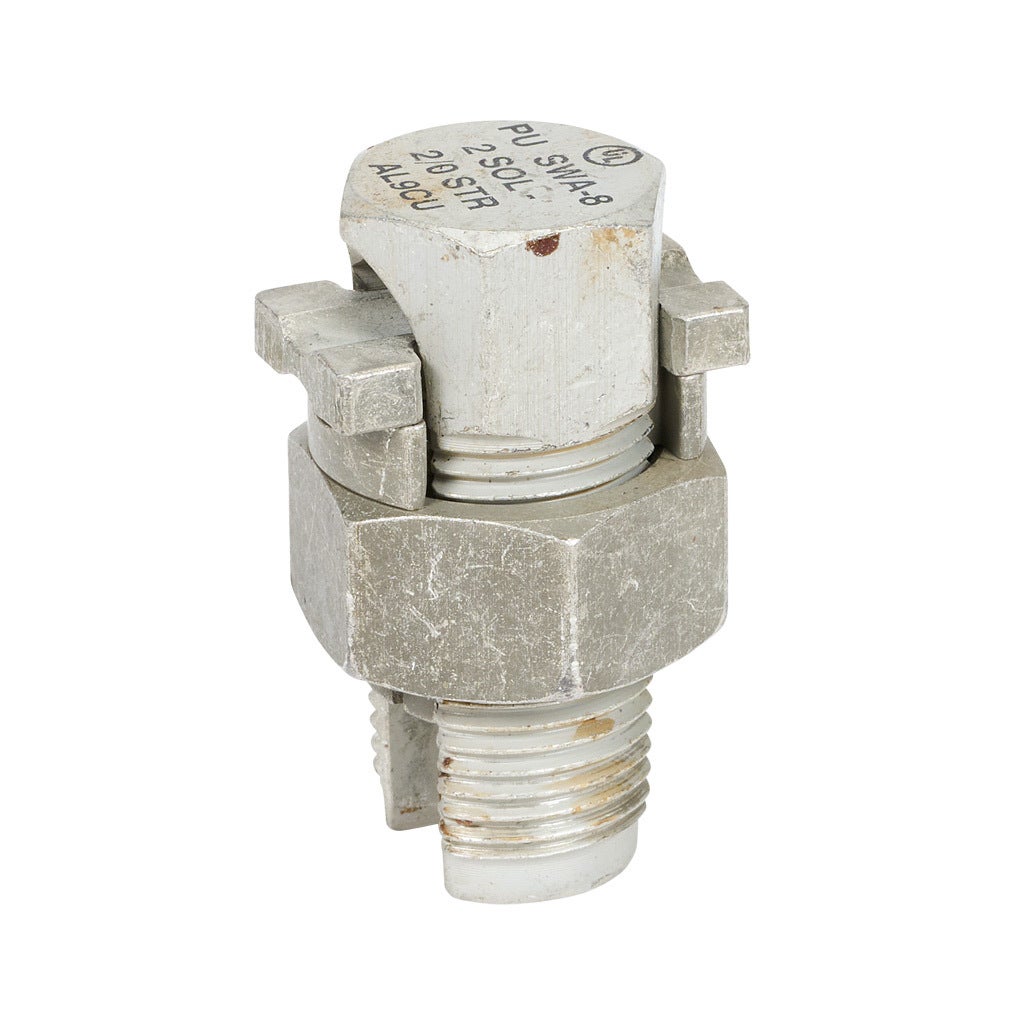

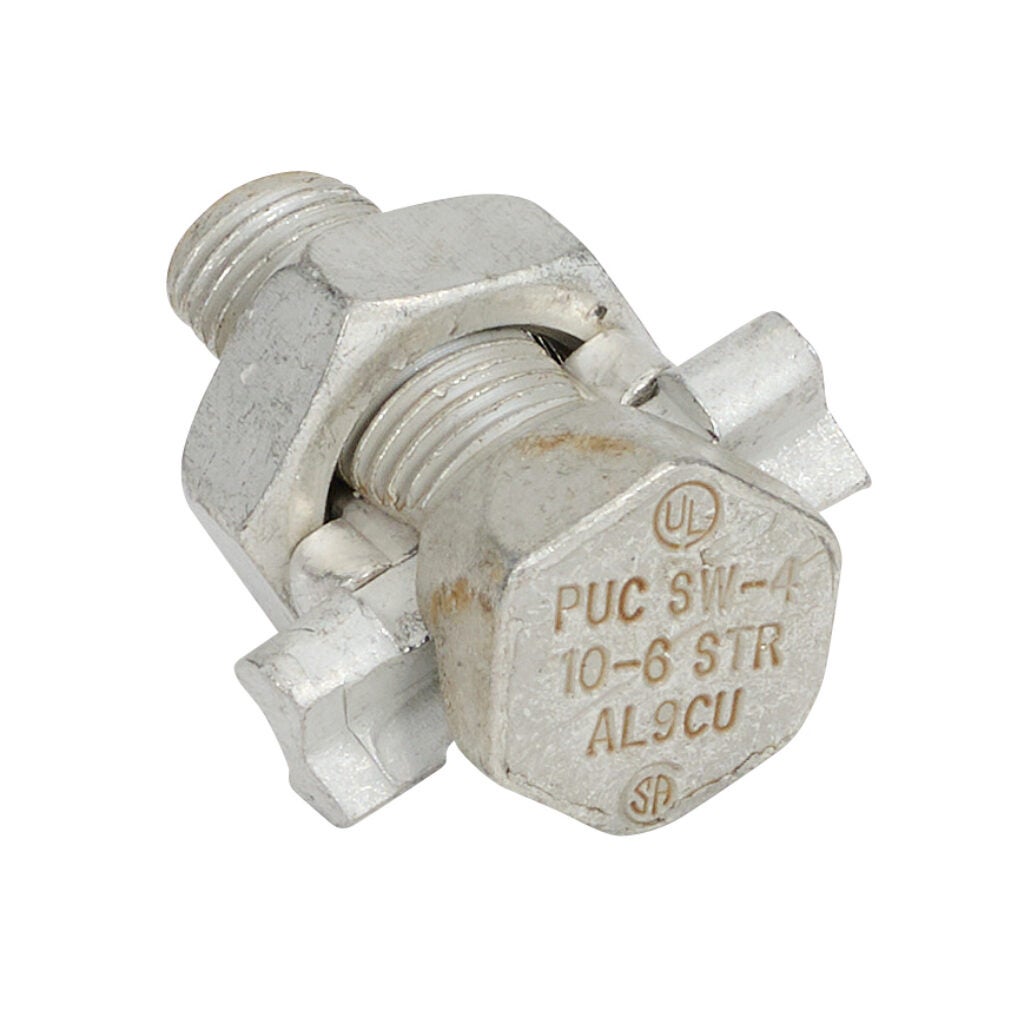

Split bolt connectors are designed for use with two conductors in electrical power applications. Some are also designed for use with two conductors or conductor to rebar in grounding and bonding applications, as well as direct burial applications in earth and concrete. These connectors are available in three different materials: the Type S and Type SW are made from copper alloy, the Type SWA are made from aluminum.

Built for dependable performance, split bolt connectors deliver a secure, long-lasting connection for two conductors in a wide range of power distribution applications. With options engineered to handle multiple wire gauges and material combinations—including CU-CU, CU-AL, and AL-AL—they offer the flexibility installers need on every job. A true hex design ensures fast, hassle-free installation using standard tools, making these connectors a smart choice for efficiency, reliability, and versatility in the field.

• True hex design allows easy installation with standard tooling (torque wrench, standard socket, box, or open-end wrench)
• Under torque, this design provides high contact pressure between conductors
• Wide wire range
• Reusable with proper installation
