Actuator Types
Rotary Actuators
Built for dependable rotary motion in industrial automation, these pneumatic actuators combine durable construction, smooth operation, and flexible configuration options to deliver long-lasting performance across a wide range of motion-control applications. Rugged anodized aluminum bodies, optional shock-absorbing configurations, and sensor-ready mounting slots promote long service life and simplified integration.
- Double-acting rack-and-pinion design provides consistent torque output up to 50 lb·in at 80 psi, enabling reliable performance across varied load conditions
- Adjustable rotation from 0° to 190° streamlines setup and supports adaptable motion profiles without added hardware
- Broad operating ranges, 14 to 145 psig pressure and 32°F to 140°F temperature, ensure dependable system behavior in diverse environments.
Gripper Actuators
Engineered for versatile, reliable part handling, these pneumatic grippers offer both parallel and angular gripping formats, broad bore-size coverage, and multiple actuation styles to support a wide range of industrial applications. Durable anodized-aluminum bodies, integral sensor-mounting slots, and flexible mounting orientations help streamline integration while delivering long-term performance.
- Size options from 6 to 40 mm bore accommodate precise handling to higher-force gripping needs
- Available in double-acting or single-acting configurations with normally open or normally closed operation for application-specific control
- Parallel jaws support precise, balanced gripping, while angular jaws provide wider initial opening for varied part geometries.
- Side-mount and end-mount grips provide versatile adaptation to suit diverse automation setups.
Gripper actuators start at $130.00
Compact Air Cylinders
Compact stainless steel round body cylinders include bore sizes from 9/16" to 3" and stroke lengths from 1/4" to 4" to meet a broad range of compact air cylinder applications where space is a concern. These small cylinders are also sometimes referred to as mini cylinders, mini actuators, flat cylinders or pancake cylinders.
- Double-acting mini actuator air cylinders
- Interchangeable with other pneumatic mini cylinder brands (pancake cylinders)
- Excellent selection of cylinder stroke lengths
- Type 304 stainless steel cylinder body with high-strength aluminum alloy end caps
- Made in the USA
Compact pneumatic air cylinders start at $58.00
Heavy duty pneumatic NFPA tie rod cylinders
This series of heavy duty NFPA cylinders includes bore sizes from 1-1/2" to 4" and stroke lengths from 1" to 32" that meet applications where abusive conditions are a concern.
- Double-acting cylinders
- Interchangeable with other common brands of heavy duty cylinders
- PTFE coated cast iron bushing
- Solid high alloy aluminum pistons fitted with magnet and PTFE wear band
- High tensile strength chrome-plated steel piston rods
- High tensile steel torqued tie rods, to allow flexure
- Some models available with adjustable cushions (both ends)
- Replacement seal kits
- Proudly made in the USA
Dual Rod Guided Cylinders
Pneumatic guided actuator with dual guide rods, bronze bushings, extruded aluminum housing and switch mounting tracks.
- Double-acting cylinders
- Interchangeable with other common brands of guided rod cylinders
- 90 sizes available
- Eight bore sizes from 12mm to 63mm
- Air cylinder stroke lengths from 10mm to 400mm
- Non-rotate tolerance of +/-0.10° or less

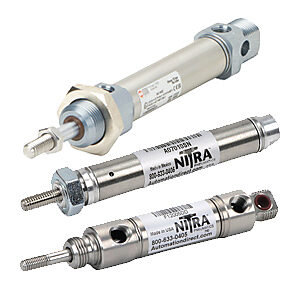

Non-Repairable Round Body Cylinders
Reliable, cost-effective pneumatic cylinders designed for everyday automation needs. These non-repairable round body cylinders offer consistent performance and easy integration across a wide range of industrial applications.
- Single-acting and double-acting air cylinders
- Imperial and metric bore sizes ranging from approximately 7/16" to 2" and 12mm to 25mm
- Stroke lengths from 1/2" up to 18" (imperial) and 50mm to 300mm (metric)
- Multiple cylinder mounting configurations
- Construction options including stainless steel bodies with aluminum end caps or all stainless steel body, end caps, and rod
- Interchangeable with many common round body and ISO-standard cylinder designs
ISO 15552 Air Cylinders
ISO 15552 Cylinders are very similar in design to NFPA cylinders (US version). They include magnetic material on the piston for sensing position and adjustable cushions on each end of stroke.
- Fully metric designed to the ISO 15552 standard
- ISO cylinder bore diameters: 32, 40, 50, 63, 80,100 mm
- Air cylinder stroke lengths from 25 to 600 mm
- Double-acting cylinders
- Flange, pivot and clevis cylinder mount options available
- Adjustable cushions at both ends
- Internal magnet for sensor switching
- Three sides with longitudinal slots for inserting and securing retractable sensors

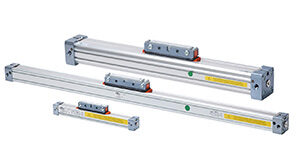

Rodless Cylinders
Rodless cylinders offer a robust design in a compact package, with the same stroke as rodded cylinders but requiring a smaller space. Mounting brackets and cylinder position switches are sold separately.
- Double acting with magnetic piston
- Front and rear adjustable cushions
- Tapped end caps mount
- Bore sizes from 16mm to 40mm bore
- Stroke lengths from 100mm to 1000mm
- 2-year warranty
