A: SCFM stands for Standard Cubic Feet per Minute. The term "Standard" refers to air at standard atmosphere (at sea level or 14.7 PSI) and temperature (70 degrees F). See the formula and chart below to understand the relationship between SCFM and Cv. A Standard Cubic Foot (SCF) of air is the mass of air that would fill a cubic foot at standard temperature and pressure conditions. Depending upon the actual temperature and pressure, one SCF of air may occupy significantly more or less volume than a cubic foot. SCFM is the flow of one SCF per minute, which may or may not be the actual volumetric flow rate.
A: ACFM stands for Actual Cubic Feet per Minute. It is a unit of volumetric capacity, referring to the actual gas flow with reference to inlet conditions. Since the volumetric capacity refers to the volume of air or other gas at the inlet to the unit, it is sometimes referred to as "inlet cubic feet per minute" (ICFM).
A: CV is the Valve Coefficient. Cv values are used to compare valves; a valve with a higher Cv allows more air flow under the same operating conditions. The relationship between Cv add SCFM (Standard Cubic Feet per Minute): Cv represents the amount of flow at all pressures, while SCFM represents the flow rate at a particular air pressure. Use the following equation and Conversion Factor chart to relate Cv to SCFM
|Cv to SCFM Conversion Factor|
|PSI of Air Pressure||40||50||60||70||80||90||100|
Please know that such a SCFM value would represent the flow of a valve (of the given Cv) that is open to atmosphere for a full minute. In practice, valves usually operate cylinders, or other pneumatic devices, and typically they cycle on/off at some rate. Visit our Air Consumption page to calculate SCFM for cylinders (and tubing) at a given pressure and duty cycle.
A: Use stacking valves such as the Nitra AVP or CMV series valves, or use a manifold with valves such as the AVS or BVS series. Stacking valves and manifolds allow the use of a shared air supply, exhaust, and centralized/multiplexed control signals. Learn more about our directional control solenoid valves.

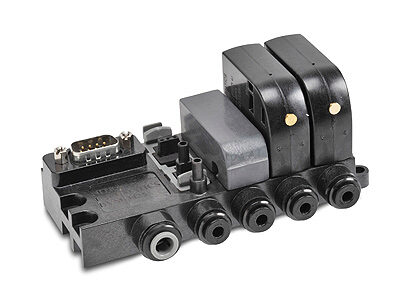

The BVM manifold with multiple BVS valves (shown at right) (shown below) , allows the use of a single air supply line AND a single 9-pin D-sub cable interface to control all the valves.
A: Solenoid actuation requires electrical switching, wiring, and shielding to operate the valve. With an air pilot valve there is no potential for sparks, and thus less risk of explosion, AND the components are typically less expensive.
A: Detented valve are useful when the valve needs a mechanical means to hold position. This might be needed for safety purposes, or in the case of a three position valve to locate the center position. It is usually achieved with a spring, ball or cam mechanism.
Circuit symbol for a
detented valve actuator
(More about circuit symbols)
A: Solenoids require the presence of electric signals, wire, and switches, along with shielding and safety considerations to reduce spark hazards and personnel risks.
Air ported valves only require extra tubing/plumbing and a separate pilot valve, and they eliminate the risk of explosion, spark, and shock. These components may also be less expensive. Air actuated valves (in hazardous locations) are sometimes controlled by solenoid style valves which are located away from the hazardous area.
A: As the name suggests, Normally Open valves allow air to pass when they are not energized (or actuated). Normally Closed valves must be actuated to allow air to pass.
A: Compression factor refers to the ratio of compressed air to uncompressed air. Uncompressed air at sea level and 70 degrees F is 1 Atmosphere, or 14.7 PSI. If you are operating other that at sea level or 70 degrees F, you may need to adjust the 14.7psi constant. For example: to determine ratio of compressed air at 80 PSI to "free"; uncompressed air (at standard atmospheric pressure):
|80 PSI + 14.7 PSI||= 6.44 (times air is compressed when at 80 PSI)|
A: When a control valve opens and air begins to move, there is always an associated pressure drop. After sufficient time passes, the system approaches equilibrium again and the pressure usually builds back to the original inlet pressure. The following formula shows the relationship between pressure drop, Cv and other factors associated with actuator movement. Visit this page for an interactive version of this formula.
