Actuator Types
Rotary Actuators
Built for dependable rotary motion in industrial automation, these pneumatic actuators deliver smooth, repeatable performance with rugged construction and flexible configuration options. Compact anodized aluminum bodies, integrated cushioning choices, and sensor-ready mounting features support long service life and simplified system integration across a wide range of applications.
- Double-acting design with selectable cushioning (rubber bumpers or shock absorbers) ensures controlled motion and reduced impact for improved durability and system longevity
- Adjustable rotation from 0° to 190° streamlines setup and supports adaptable motion profiles without added hardware
- Wide operating range (14.5 to 145 psig, 31°F to 140°F) ensures reliable performance in diverse industrial environments
- Magnetic piston with integrated sensor grooves supports easy installation of 4mm round sensors for position feedback and automation integration
Gripper Actuators
Engineered for versatile, reliable part handling, these pneumatic grippers offer both parallel and angular gripping formats, broad bore-size coverage, and multiple actuation styles to support a wide range of industrial applications. Durable anodized-aluminum bodies, integral sensor-mounting slots, and flexible mounting orientations help streamline integration while delivering long-term performance.
- Size options from 6 to 40 mm bore accommodate precise handling to higher-force gripping needs
- Available in double-acting or single-acting, normally open configurations for application specific control
- Parallel jaws support precise, balanced gripping, while angular jaws provide wider initial opening for varied part geometries.
- Side-mount and end-mount grips provide versatile adaptation to suit diverse automation setups.
Gripper actuators start at $46.50
3-Jaw Gripper Actuators
3-jaw grippers offer stable, balanced gripping of round or irregular parts through synchronized multi-point contact. Built for consistent performance and flexible mounting, these grippers are ideal for applications requiring secure centering and precise handling.
- Three-jaw design provides centered gripping for cylindrical or irregular parts
- Wide range of bore sizes supports different load and force requirements
- Double-acting operation ensures consistent gripping force
- Multiple mounting options simplify integration into automation systems
- Best suited for part centering, machining support, and precision handling applications
3-Jaw gripper actuators start at $187.00
Compact Air Cylinders
Compact stainless steel round body cylinders include bore sizes from 9/16" to 3" and stroke lengths from 1/4" to 4" to meet a broad range of compact air cylinder applications where space is a concern. These small cylinders are also sometimes referred to as mini cylinders, mini actuators, flat cylinders or pancake cylinders.
- Double-acting mini actuator air cylinders
- Interchangeable with other pneumatic mini cylinder brands (pancake cylinders)
- Excellent selection of cylinder stroke lengths
- Type 304 stainless steel cylinder body with high-strength aluminum alloy end caps
- Made in the USA
Compact pneumatic air cylinders start at $58.00
Compact Metric Extruded Air Cylinders
Compact extruded air cylinders deliver space-saving linear motion with strong, lightweight aluminum construction. Designed for tight machine layouts, these cylinders offer dependable double-acting performance, flexible mounting options, and easy sensor integration for modern automation systems.
- Wide range of bore sizes from 12mm to 100mm for flexible force sizing
- Short stroke configurations from 5mm to 100mm, ideal for clamping, indexing, and small motion tasks
- Extruded aluminum body provides strength with reduced weight
- Magnetic piston design supports easy integration with position sensors
- Multiple mounting styles including tapped and through-hole options simplify machine design
- Ideal for packaging equipment, assembly automation, and space-constrained machinery
Compact metric extruded air cylinders start at $21.00
Heavy-Duty NFPA Tie Rod Cylinders
This series of heavy duty NFPA cylinders includes bore sizes from 1-1/2" to 4" and stroke lengths from 1" to 32" that meet applications where abusive conditions are a concern.
- Double-acting cylinders
- Interchangeable with other common brands of heavy duty cylinders
- PTFE coated cast iron bushing
- Solid high alloy aluminum pistons fitted with magnet and PTFE wear band
- High tensile strength chrome-plated steel piston rods
- High tensile steel torqued tie rods, to allow flexure
- Some models available with adjustable cushions (both ends)
- Replacement seal kits
- Proudly made in the USA
Medium-Duty NFPA Tie Rod Cylinders
NFPA medium-duty tie rod air cylinders provide rugged, standardized linear motion for industrial systems requiring moderate force and longer strokes. Built to NFPA mounting standards, these cylinders ensure easy integration, reliable performance, and compatibility across a wide range of automation and material handling applications.
- Available in multiple bore sizes from 1-1/2in to 4in to match required force output
- Stroke options up to 24 inches support long travel applications such as lifting, pressing, and positioning
- Double-acting designs deliver consistent extend and retract force for controlled motion
- Adjustable pneumatic cushions reduce end-of-stroke impact in high-cycle systems
- Broad mounting accessory options including clevis, pivot, flange, and rod ends simplify installation in existing equipment
- Best suited for medium-duty automation, machine building, and material handling systems
Medium-duty NFPA tie rod cylinders start at $70.00

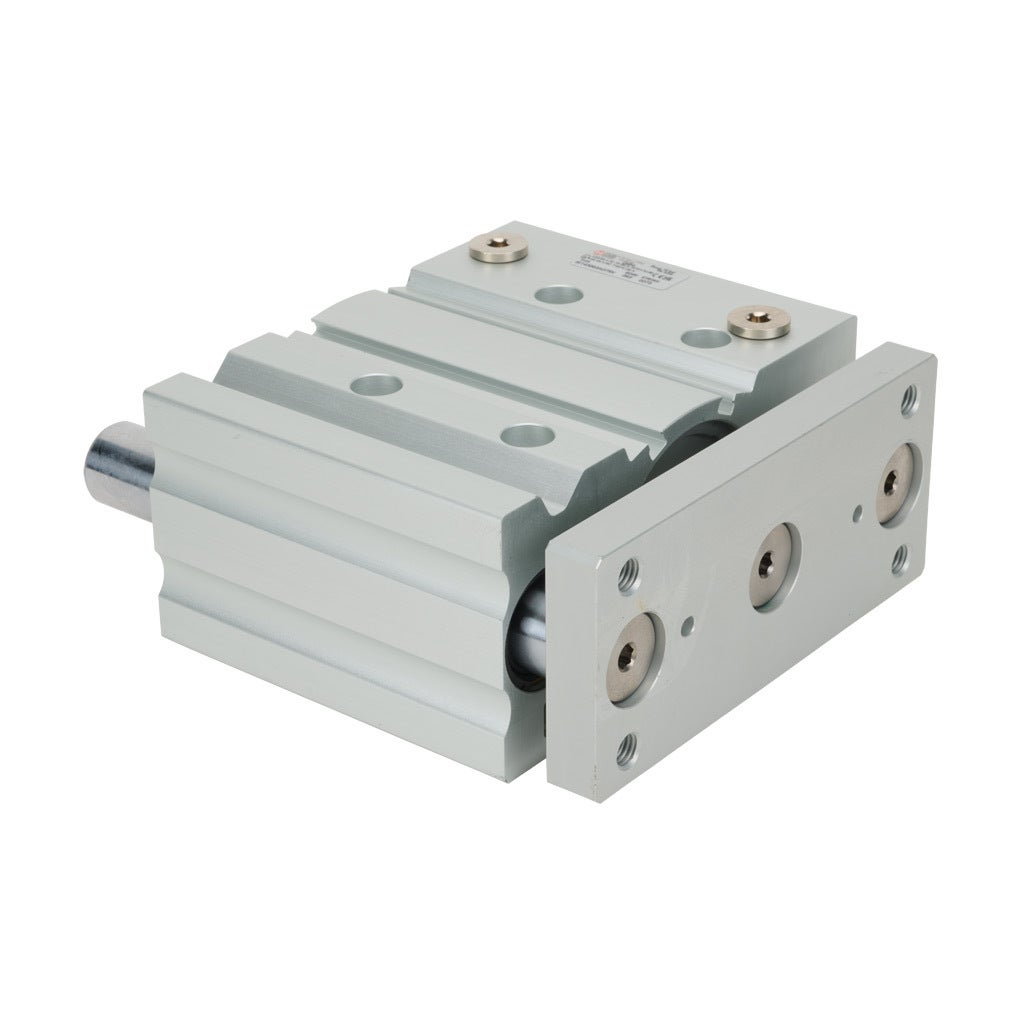

Dual Rod Guided Cylinders
Pneumatic guided actuator with dual guide rods, bronze bushings, extruded aluminum housing and switch mounting tracks.
- Double-acting cylinders
- Interchangeable with other common brands of guided rod cylinders
- 90 sizes available
- Eight bore sizes from 12mm to 63mm
- Air cylinder stroke lengths from 10mm to 400mm
- Non-rotate tolerance of +/-0.10° or less
Non-Repairable Round Body Cylinders
Reliable, cost-effective pneumatic cylinders designed for everyday automation needs. These non-repairable round body cylinders offer consistent performance and easy integration across a wide range of industrial applications.
- Single-acting and double-acting air cylinders
- Imperial and metric bore sizes ranging from approximately 7/16" to 2" and 12mm to 25mm
- Stroke lengths from 1/2" up to 18" (imperial) and 50mm to 300mm (metric)
- Multiple cylinder mounting configurations
- Construction options including stainless steel bodies with aluminum end caps or all stainless steel body, end caps, and rod
- Interchangeable with many common round body and ISO-standard cylinder designs

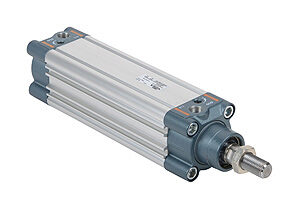

ISO 15552 Air Cylinders
ISO 15552 Cylinders are very similar in design to NFPA cylinders (US version). They include magnetic material on the piston for sensing position and adjustable cushions on each end of stroke.
- Fully metric designed to the ISO 15552 standard
- ISO cylinder bore diameters: 32, 40, 50, 63, 80,100 mm
- Air cylinder stroke lengths from 25 to 600 mm
- Double-acting cylinders
- Flange, pivot and clevis cylinder mount options available
- Adjustable cushions at both ends
- Internal magnet for sensor switching
- Three sides with longitudinal slots for inserting and securing retractable sensors
Rodless Cylinders
Rodless cylinders offer a robust design in a compact package, with the same stroke as rodded cylinders but requiring a smaller space. Mounting brackets and cylinder position switches are sold separately.
- Double acting with magnetic piston
- Front and rear adjustable cushions
- Tapped end caps mount
- Bore sizes from 16mm to 40mm bore
- Stroke lengths from 100mm to 1000mm
- 2-year warranty
