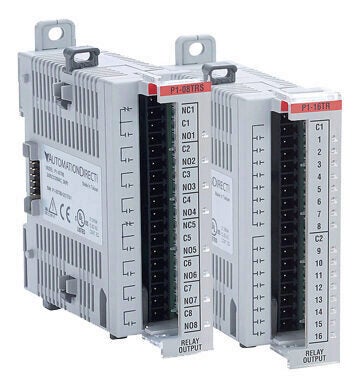

Productivity1000 Relay Output Modules
Productivity1000 relay modules provide surge-protected outputs to operate DC or AC rated devices. Modules with Form C (normally open/normally closed) and/or Form A (normally open) relay contacts available. Solid state relay modules are suitable for applications requiring frequent switching.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
New!
For use with higher current control devices, relay output modules function just as an electromechanical control relay would. An external source is supplied to the relay contacts on the module and the main controller will control the opening or closing of these contacts based on the logic coded in the CPU. Since the controller is only controlling the "coil" and not supplying the output voltage, higher current circuits can be used.
For applications requiring extensive or extremely fast load switching, solid state relays offer longer lifespans, greater reliability, near-instantaneous switching, and less electrical noise than electromechanical relays due to their lack of moving parts.
- Mechanical relay output modules with 4, 8, or 16 points, in a selection of Form A or Form C contacts
- Solid state relay output module with 4 points and 4 isolated commons
- Support 5-30 VDC, 6-24 VDC, 5-264 VAC, or 6-120 VAC circuits; solid state relays support 24 VAC/VDC
- Standard relay modules rated up to 3A per point for isolated circuits; up to 8A/common for multiple circuits on one common
- 4-channel high-current model rated for up to 7A per point
- Solid state models rated for 1A per point
Starting at
(P1-08TRS)
For part listing and specifications, go to Shop Now
