Fail-safe inductive proximity sensors can be connected to a safety relay that accepts OSSD input when metal detection in fail-safe applications is required. Models are available in 12mm, 18mm, and 30mm tubular and cube form factors, and in flush and non-flush mounting styles.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Fail-safe Inductive Sensors
Category Selection
With machinery, a faulty sensor could lead to unexpected movements, collisions, or other dangerous situations. A fail-safe sensor is designed to trigger a safe state (like stopping a machine) if it fails, reducing the risk of injury to personnel or damage to equipment.
Fail-safe inductive sensors are a type of proximity sensor with OSSD outputs that are ideal for safety applications requiring the detection of metal at close distances. Safe state position may be determined by target present or not present, depending on model.
For part listings and specifications, go to Shop Now

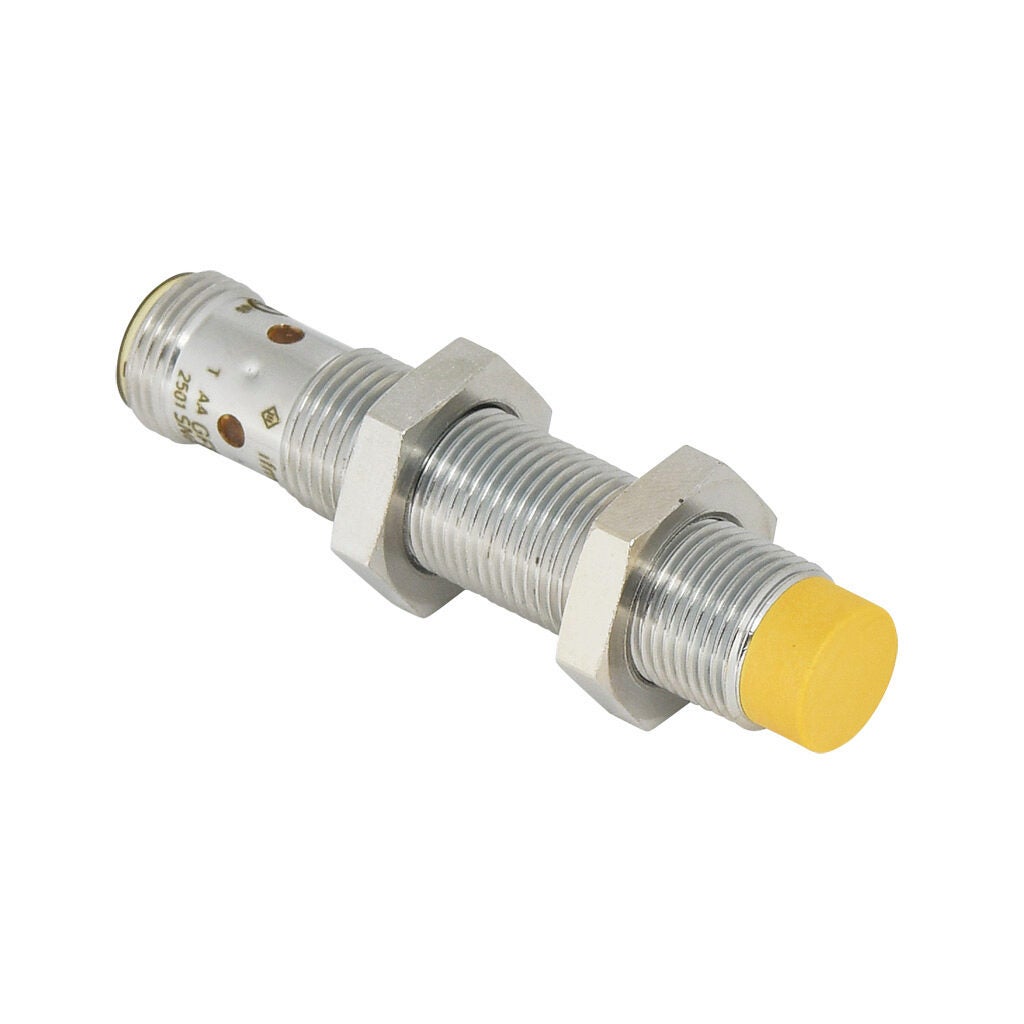

12mm Fail-safe Inductive Sensors
New!
12mm fail-safe inductive sensors can be used in fail-safe applications requiring metal detection of a small target.
- Certification to EN 60947-5-3 for electromechanical control gear
- Bronze-plated brass and stainless steel models
- (2) OSSD outputs
- Maximum safe off distance of 6mm
- Non-flush mount
- SIL 2 / PLd
Starting at
$125.00
(GF854S)
18mm Fail-safe Inductive Sensors
New!
18mm fail-safe inductive sensors can be used in fail-safe applications requiring metal detection of a medium-sized target.
- Certification to EN 60947-5-3 for electromechanical control gear
- Bronze-plated brass and stainless steel models
- (2) OSSD outputs
- Maximum safe off distance of 12mm
- Flush and non-flush mount
- SIL 2 / PLd
Starting at
$135.00
(GG854S)
30mm Fail-safe Inductive Sensors
New!
30mm fail-safe inductive sensors can be used in fail-safe applications requiring metal detection of a large target.
- Certification to EN 60947-5-3 for electromechanical control gear
- Bronze-plated brass and stainless steel models
- (2) OSSD outputs
- Maximum safe off distance of 30mm
- Flush and non-flush mount
- SIL 3 / Ple or SIL 2 / PLd, depending on model
Starting at
$144.00
(GI854S)

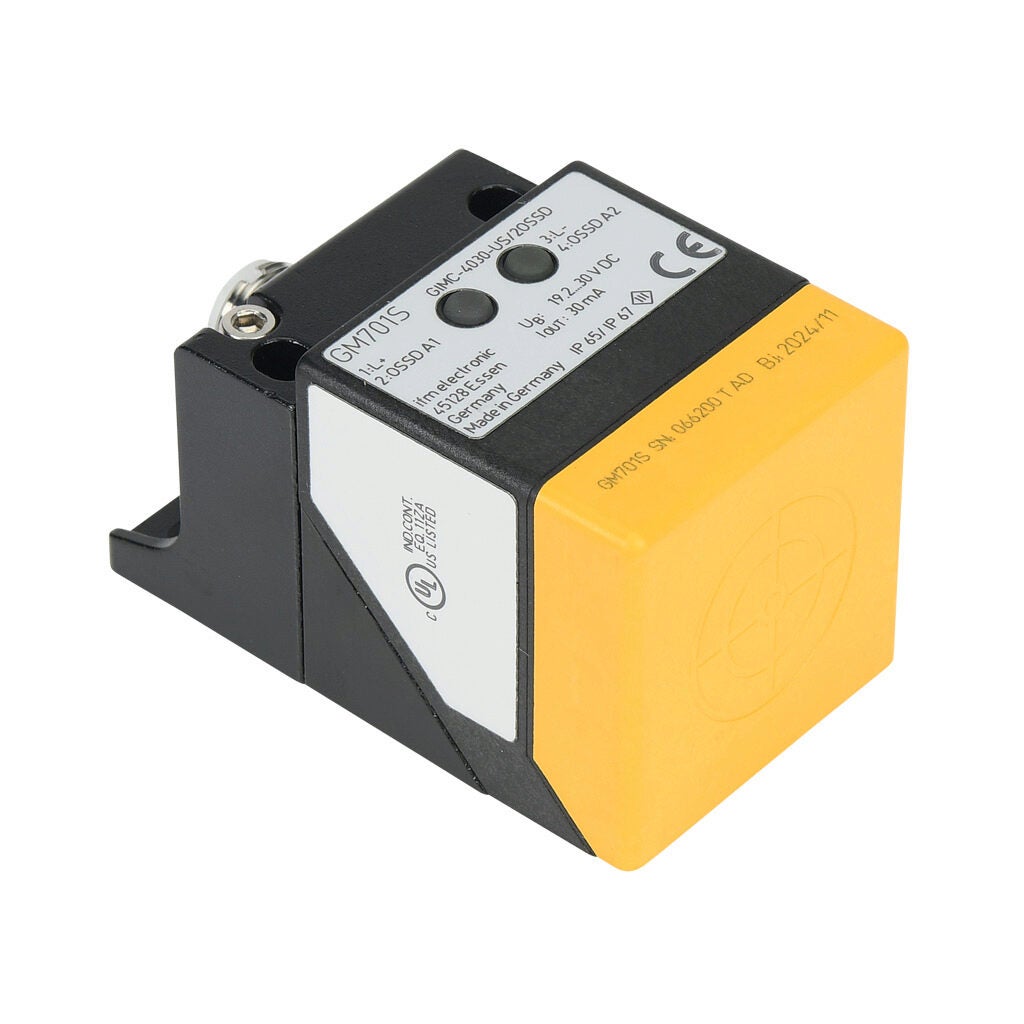

Large Rectangular Fail-safe Inductive Sensors
New!
Large rectangular inductive sensors can be used in fail-safe applications requiring metal detection of a large target.
- Certification to EN 60947-5-3 for electromechanical control gear
- Die-cast zinc construction
- 40mm cube housing
- (2) OSSD outputs
- Maximum safe off distance of 45mm
- Non-flush mount
- SIL 3 / PLe
Priced at
$275.00
(GM701S)
