The Productivity1000 series PLCs hardware is built to last and designed for applications where panel real estate is a concern. With various low-cost expansion I/O modules to choose from and two feature-rich CPUs all backed with a 2-year warranty and a 30-day money-back guarantee, you'll never pay for overpriced hardware again!

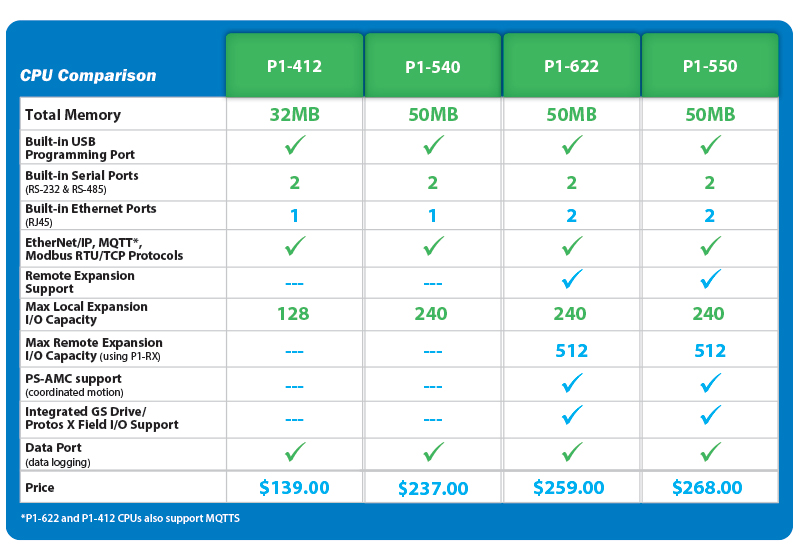

With 50MB of user memory, up to 5 built-in communication ports, data logging and tag name programming, these CPUs offer big features in a small package.
The P1-RX module adds remote I/O capability to the P1-550 CPU, providing up to 512 remote I/O points (4 remote bases with 8 modules each).
P1-RX - Productivity1000 remote I/O module, (1) Ethernet (RJ45) port for use with P1-550 CPU
Productivity1000 power supplies provide 16 or 26W of output power with VDC or VAC input options.
12-24 VDC input with 24 VDC, 0.67 A, 16W output. Use with up to 8 I/O expansion modules
100-240 VAC or 125VDC input with 24VDC, 0.67 A, 16W output. Use with up to 8 I/O expansion modules
100-240 VAC or 125VDC input with 24VDC, 1.08 A, 26W output. Use with up to 15 I/O expansion modules
Discrete input, output and combo input/output modules are available in 8 or 16-point versions with various DC/AC voltage ranges.
Input Module 8-pt, 12-24 VDC
Input Module 8-pt, 24 VAC/VDC
Input Module 16-pt, 12-24 VDC
Input Module 16-pt, 24 VAC/VDC
Output Module 8-pt, 3.3-24 VDC
Output Module 8-pt, 12-24 VDC
Output Module 15-pt, 3.3-24 VDC
Output Module 15-pt, 12-24 VDC
Combo Module 8-pt, 12-24 VDC in, 7-pt 3.3-24 VDC out
Combo Module 8-pt, 12-24 VDC in, 7-pt 12-24 VDC out
Input Module 8-pt, 120-240 VAC, 2 commons
Output Module 8-pt, 120-240 VAC, 2 commons
Relay output modules support devices that operate with voltages up to 240VAC or 24VDC.
Output Module 8-pt, 6-24 VDC/6-120 VAC, 3A/pt
Output Module 16-pt, 6-24 VDC/6-240 VAC, 2A/pt
Combo Module 8-pt discrete 24 VAC/VDC in, 8-pt 6-24 VDC/6-240 VAC relay out, 1A/pt
Analog input and output modules are available to monitor and control pressure, temperature, flow, level or any other process signal your application requires.
Input Module 4-channel, ±5 VDC, ±10 VDC, 0-5 VDC, 0-10 VDC and 0-20 mA, 16-bit resolution
Input Module 8-channel, 0-20 mA, 13-bit resolution
Input Module 8-channel, 0-10 VDC, 13-bit resolution
Output Module 8-channel, 4-20 mA, 12-bit resolution
Output Module 8-channel, 0-10 VDC, 12-bit resolution
Input Module 4-channel, 0-20 mA, 13-bit resolution
Input Module 4-channel, 0-10 VDC, 13-bit resolution
Output Module 4-channel, 4-20 mA, 12-bit resolution
Output Module 4-channel, 0-10 VDC, 12-bit resolution
Thermocouple Input Module 4-channel, 16-bit resolution
Thermistor Input Module 4-channel, 16-bit resolution
Temperature Input Module, RTD, 4-channel, 16-bit resolution
Analog Combo Module, current, 4-channel In, 2-channel Out, 13-bit resolution
Analog Combo Module, voltage, 4-channel In, 2-channel Out, 13-bit resolution
Specialty modules are designed to perform specific functions, including input simulation, which differ from the typical functions of input/output modules.

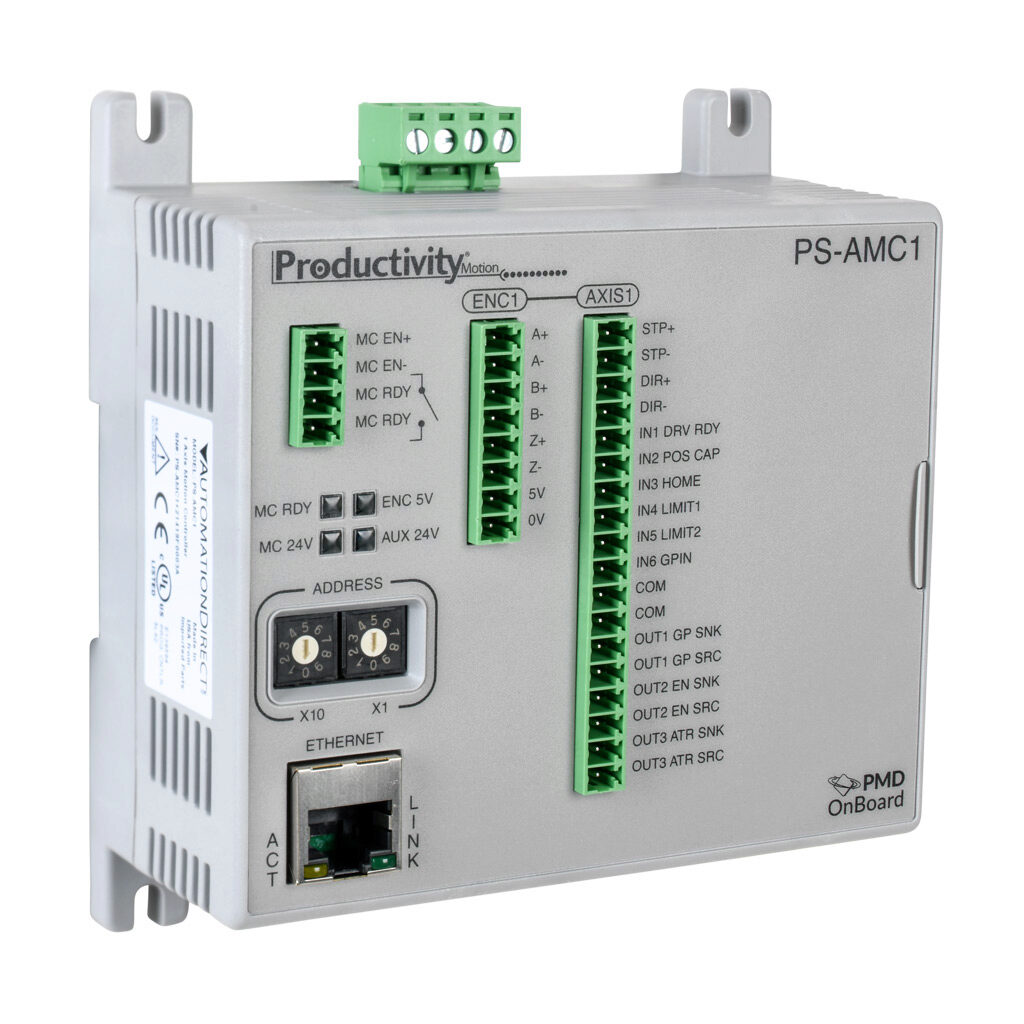

Motion controllers with up to 4 axes, 1 MHz maximum switching frequency, up to 24 high-speed input points, 4 differential encoder inputs, 12 high-speed output points, and 4 differential outputs.
Input Simulator Module, 8-pt
High-speed Counter Module, 2) 100kHz counter inputs, 2) 5-24 VDC general purpose inputs
Pulse Width Modulation Output Module, 4) 0-20 kHz pulse modulated outputs, 0-100% duty cycle
Productivity1000's low power usage - about the same as a 20W light bulb - will cut your energy costs for even more savings!
Productivity soars when you have the tools you need to get the job done. The Productivity1000 starter kit and the FREE Productivity Suite programming software provide everything you need to get a jump start on your next application.
