Specialty Modules
BRX specialty I/O modules provide system-level functions that extend beyond standard discrete and analog signal processing. These modules are used to support configuration control, diagnostic monitoring, and system testing within a BRX I/O architecture. They integrate directly into the I/O backplane alongside standard modules and operate within the same system-level addressing and communication structure.
For part listing and specifications, go to Shop Now
BRX Active Padding Module
The BX-APAD active padding module emulates BRX modules within a system I/O configuration. It is software-configured to represent the address space of a specific module type, allowing it to be reserved so downstream module addressing remains unchanged if a module is removed. It can also emulate intelligent module configurations and data structures.
Priced at
(BX-APAD)

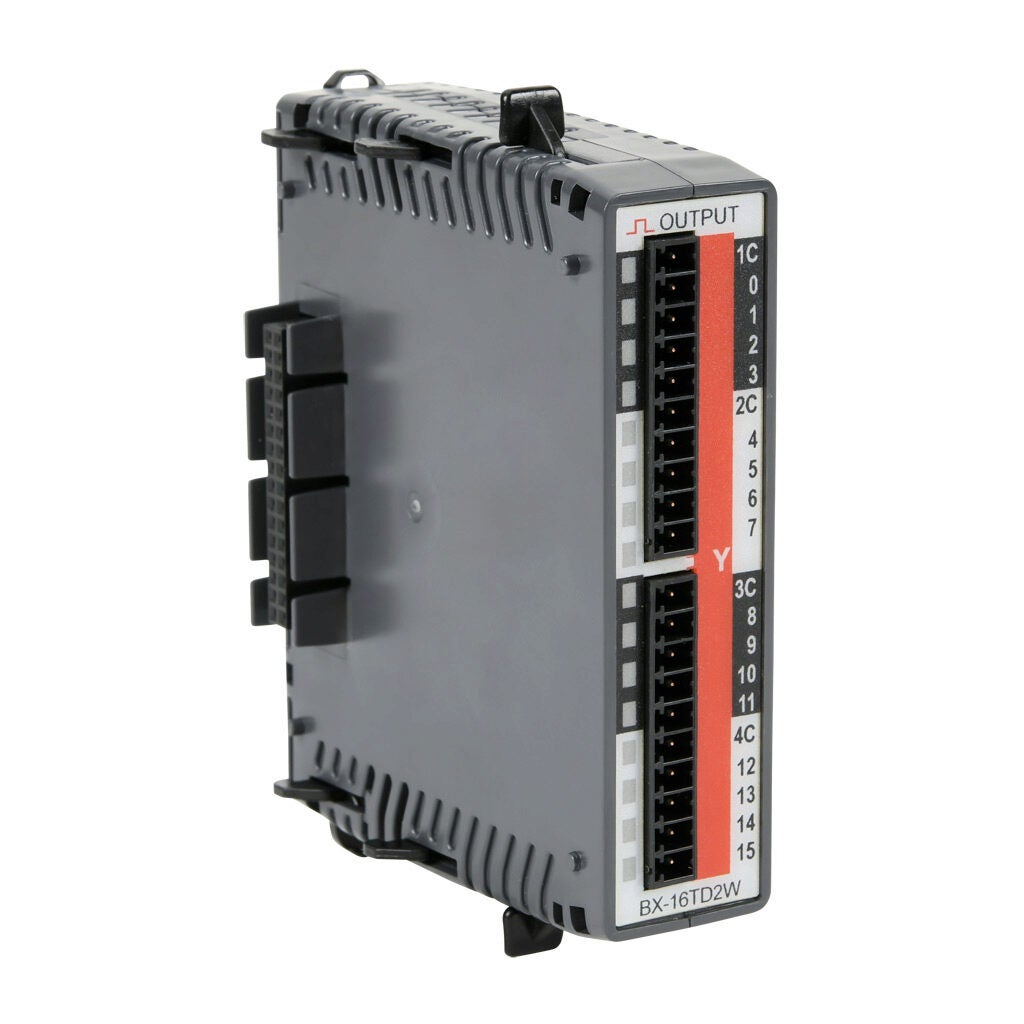

BRX DC Output Module with Diagnostics
The BX-16TD2W DC output module with built-in diagnostics provides individually configurable outputs with fault detection for conditions such as open load (broken wire), over-temperature, and overcurrent (short circuit). When a fault is detected, the corresponding diagnostic input turns ON automatically and turns OFF once the fault is cleared.
- 16-point output module
- 12 to 24 VDC output range
- 2A/point maximum output current
- Fault detection thresholds
- 16A overcurrent detection minimum
- 150°C overtemperature threshold
- <1ms overcurrent, open/low load response
Priced at
(BX-16TD2W)
BRX Input Simulator Module
The input simulator module provides eight toggle switches for simulating input devices, enabling testing and manual operation.
Priced at
(BX-08SIM)
