BRX remote I/O controllers are ideal for systems where components are separated by large distances or where an extreme amount of I/O is needed. With these controllers, remote I/O can be located separately from the CPU and linked through Ethernet, Modbus RTU, or Modbus TCP communication.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Remote I/O Controllers
BRX remote I/O controllers serve as the communication interface between distributed BRX I/O modules and the host control system. Supporting native Do‑more remote I/O, DirectLOGIC Ethernet remote I/O, and Modbus‑based applications, these controllers manage the exchange of I/O data between remote field devices and the PLC or master controller. Each unit supports up to eight BRX I/O expansion modules and is designed for seamless integration into a wide range of automation system architectures.
For part listing and specifications, go to Shop Now

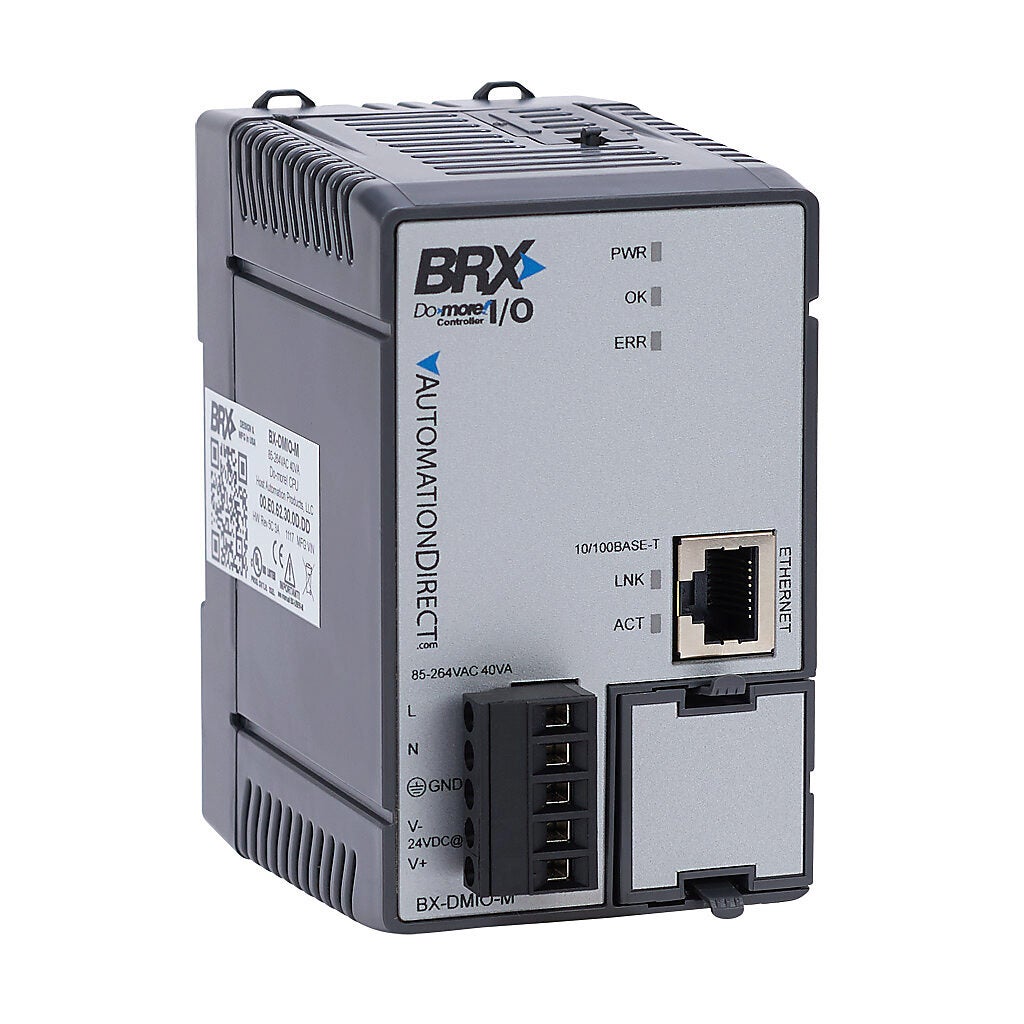

Do-more I/O Controllers (DMIO)
BRX Do-more I/O controllers provide distributed I/O throughout a facility by connecting remote BRX I/O modules to Do-more PLCs over Ethernet. Installed near the equipment they serve, remote I/O racks communicate with the host PLC through a single network connection using the Do-more Ethernet Remote I/O protocol. When stacked with BRX remote I/O modules, they form a shared backplane and communicate via the system bus. Remote I/O systems are automatically discovered and treated as native I/O, enabling fast configuration and seamless integration with the control system.
- Compatible with BX-DM1E, H2-DM1E, and T1H-DM1E CPUs
- Up to 8 expansion modules per rack
- Up to 16 remote I/O racks per Do-more CPU
- Built-in 10/100 Mbps Ethernet port
- Available in 120–240 VAC and 12–24 VDC powered models
- AC-powered models include an integrated 24 VDC auxiliary power supply
- Embedded HTTP web server provides access to system status and diagnostic information
Starting at
(BX-DMIO-M-D)

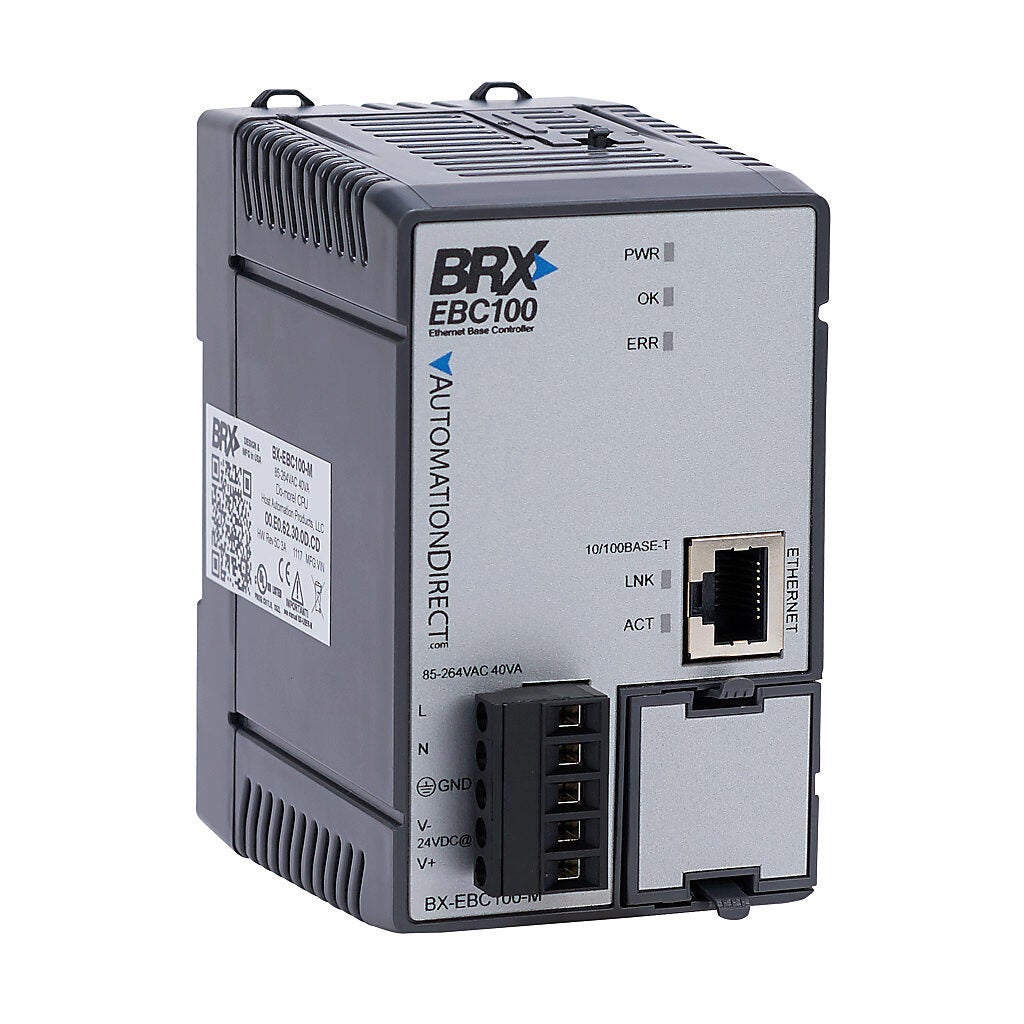

Ethernet Base Controllers (EBC100)
BRX Ethernet Base Controllers (EBC100) provide Ethernet-based remote I/O expansion for DirectLOGIC PLC systems, Do-more PLC systems, and Modbus TCP applications. They allow remote I/O racks to be installed near field devices and communicate back to the host system over a single Ethernet connection. Depending on the protocol used, I/O data can appear as native system I/O or be accessed through standard Modbus TCP read and write instructions. This enables flexible integration of distributed I/O across both legacy and modern control platforms.
- Supports Do-more Ethernet Remote I/O, Host Ethernet Remote I/O, and Modbus TCP server communications
- Compatible with BX-DM1E, H2-DM1E, and T1H-DM1E CPUs, as well as H2-ERM100 and H4-ERM100 systems
- Up to 8 expansion modules per rack
- Up to 16 EBC100 remote I/O racks supported for Do-more or DirectLOGIC systems
- Up to 247 remote I/O racks supported for Modbus TCP applications
- Built-in 10/100 Mbps Ethernet port
- Available in 120–240 VAC and 12–24 VDC powered models
- AC-powered models include an integrated 24 VDC auxiliary power supply
- Embedded HTTP web server provides access to system status and diagnostic information
Starting at
(BX-EBC100-M-D)

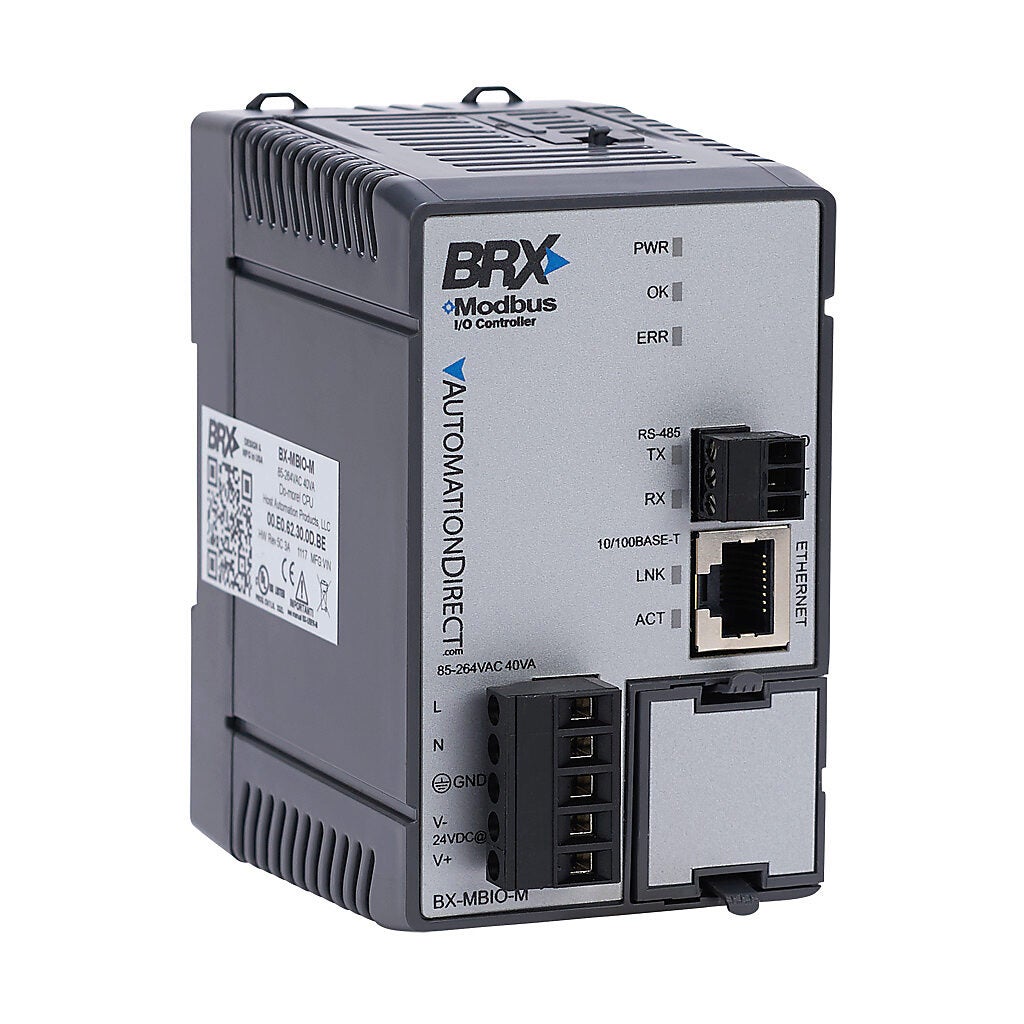

Modbus I/O Controllers (MBIO)
BRX Modbus I/O slave controllers (MBIO) provide distributed I/O expansion for systems using Modbus RTU or Modbus TCP master devices. Remote BRX I/O modules connect to the controller and exchange I/O data with a host system using standard Modbus read and write instructions. This allows distributed I/O points to be mapped to Modbus registers for integration with PLCs and other control systems that support Modbus communications.
- Compatible with any Modbus RTU master or Modbus TCP client device
- Up to 8 expansion modules per rack
- Up to 31 remote I/O racks supported for Modbus RTU over RS-485
- Up to 247 remote I/O racks supported for Modbus TCP applications
- Built-in 10/100 Mbps Ethernet port
- Available in 120–240 VAC and 12–24 VDC powered models
- AC-powered models include an integrated 24 VDC auxiliary power supply
- Embedded HTTP web server provides access to system status and diagnostic information
Starting at
(BX-MBIO-M-D)
