Starting at only $205.00 (BX-DM1-10AR-D) the BRX PLC family is an extremely versatile compact stackable system that you can customize to your specific controller needs. With four different form factors, built-in high-speed inputs, interchangeable communications port, on-board analog I/O, and many I/O expansion modules available, you can build the ideal controller for your application.
The BRX M series is a simple (no built-in I/O) controller that can be used for a variety of purposes including machine data logging and Ethernet networking. If I/O becomes a necessity, the M series can be expanded with your choice of up to 8 I/O modules. With this series, you decide exactly how much and what type of I/O your controller needs.
Click here to see all available M Series optionsThe BRX 10-point series includes all the standard features plus 10 built-in discrete I/O points (AC, DC and relay options available). With the exception of models with relay outputs, all of the on-board discrete I/O can be configured for current-protected high-speed functions up to 250 kHz. Relay output models have high-speed inputs only. Software-selectable analog I/O with your choice of 0-5VDC, 0-10VDC, +/-5VDC, +/-10VDC, 4-20mA or +/-20mA input/output ranges and a 10/100 Mbps Ethernet port are available on select units. The 10-point series is also expandable with up to 2 additional I/O modules.
Click here to see all available 10-point Series optionsThe BRX 18-point series has all of the benefits of the 10-point series plus an additional 8 discrete I/O points for 18 total. 14 of the 18 I/O points (on non-relay models) can be utilized for high-speed I/O applications up to 250 kHz. Ethernet communication and built-in analog I/O points are also options with this series. Depending on model, the 18-point series will allow expansion with 4 to 8 additional expansion I/O modules.
Click here to see all available 18-point Series optionsThe BRX 36-point series takes I/O count one step further with 36 onboard discrete I/O points, 18 of which (on non-relay models) are capable of protected 250 kHz high-speed I/O. Six user-configurable analog I/O points are available on the Ethernet capable units and the 36-point series can be expanded with 4 to 8 additional expansion I/O modules.
Click here to see all available 36-point Series options
The BRX Do-more! I/O controller provides easy remote expansion for any Do-more! system. Add up to 16 remote I/O racks to your application using the DMIO controller, that's over an additional 4,000 discrete or over 2,000 additional analog I/O points. When using the DMIO controller, all I/O racks will be auto-discovered and seen as native I/O to the system allowing for instant configuration.
Supported protocols:
• Do-more! Ethernet Remote I/O - use with any Do-more! controller
Click here to see all available Remote I/O Controller options
The BRX Ethernet Base Controller can be used to expand any system using DirectLOGIC H2-ERM100s/H4-ERM100s, any Do-more! system, and can also be used as a Modbus TCP Server. Up to 16 remote EBC100 racks can be used with DirectLOGIC or Do-more! systems and 247 EBC100 racks can be added when using Modbus TCP. That is over an additional 63,000 discrete I/O points! The remote I/O will be seen as native to the system unless using Modbus TCP, then the Modbus Read/Write instructions are required for receiving/sending I/O data.
Supported protocols:
• Do-more! Ethernet Remote I/O - use with any Do-more! controller
• Host Ethernet Remote I/O - use with H2-ERM100s/H4-ERM100s
• Modbus TCP - use with Modbus TCP Client
Click here to see all available Remote I/O Controller options
The BRX Modbus I/O slave controller allows any system with a Modbus master/client to expand its I/O capacity. Supporting both Modbus RTU and Modbus TCP protocols, this controller provides up to 31 additional Modbus RTU remote I/O racks and 247 additional Modbus TCP remote I/O racks. With the Modbus TCP option, over 63,000 extra discrete I/O points are possible. When using the MBIO slave controller, I/O data is sent to/from the master using Modbus Read/Write commands. The MBIO slave controller is great for remote expansion with other AutomationDirect PLCs or as a low-cost alternative for 3rd party controllers that support Modbus mastering.
Supported protocols:
• Modbus RTU - use with Modbus RTU Master
• Modbus TCP - use with Modbus TCP Client
Click here to see all available Remote I/O Controller options

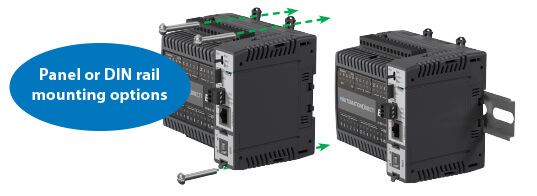

The BRX platform requires no base or backplane and the PLC units can operate as stand-alone controllers or be expanded with up to 8 additional I/O modules (depending on model). 36 discrete I/O expansion modules are currently available with 5, 8, 12, 16, and 32-point versions, allowing the BRX system to expand up to 292 local discrete I/O points total (with the 36-point series). 33 analog I/O modules are also available (including thermocouple, RTD and thermistor input modules) with up to 16 channels per module for a total of 134 local analog I/O points total (with the 36-point series). Universal temperature and analog I/O modules are available providing all-in-one temperature and analog signals. Specialty modules provide up to 128 of additional high-speed I/O points or up to 32 additional RS232, RS485, or RS422 serial communications ports. The stackable design of the BRX platform gives you the ability to purchase only the I/O required for your particular application.

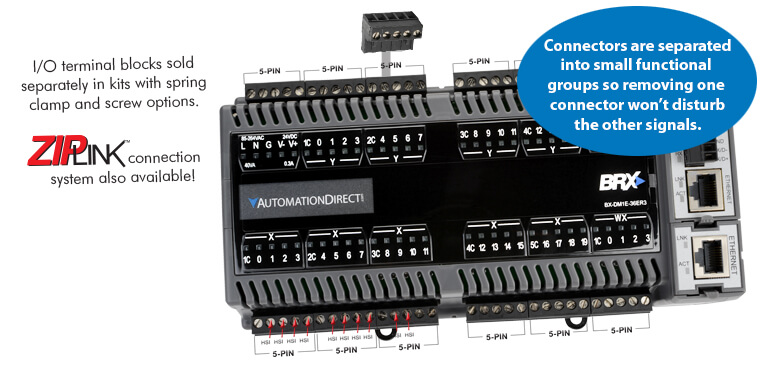

Click here to see available Expansion ModulesThe BRX PLC system components do not not ship with pre-selected I/O terminal blocks. This allows you to select the termination that best fits your application and allows you to only pay for the termination you use.
Click here to see available Connection Options
