BRX PLCs are Do-more® Driven: Expansion Modules
Go to Discrete Input Modules | Go to Discrete Output Modules | Go to Discrete Combo Input / Output Modules |
Go to Analog Input Modules | Go to Analog Output Modules | Go to Analog Combo Input / Output Modules |
Go to Temperature Input Modules | Go to Temperature Combo Modules | Go to Specialty Modules
A Wide Variety of Expansion Modules
The BRX PLC family uses the popular Do-more! DM1 technology and is an extremely versatile compact stackable system that you can customize to your specific controller needs. With four different form factors, built-in high-speed inputs, interchangeable communications port, on-board analog I/O, and many I/O expansion modules available, you can build the ideal controller for your application.

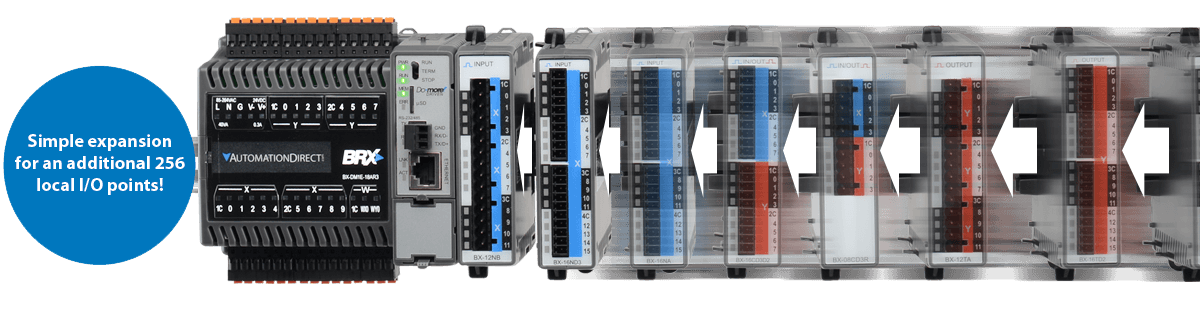

Expansion is a snap!
The BRX platform requires no base or backplane and the PLC units can operate as stand-alone controllers or be expanded with up to 8 additional I/O modules.
41 discrete I/O expansion modules are currently available with 5, 8, 12, 16, and 32-point versions, allowing the BRX system to expand up to 292
local discrete I/O points total (with the 36-point series). 33 analog I/O modules are also available (including thermocouple, RTD and thermistor input modules) with
up to 16 channels per module for a total of 134 local analog I/O points total (with the 36-point series). Universal temperature and analog I/O modules are available
providing all-in-one temperature and analog signals. Specialty modules provide up to 128 of additional high-speed I/O points or up to 32 additional RS232, RS485,
or RS422 serial communications ports. The stackable design of the BRX platform gives you the ability to purchase only the I/O required for your particular application.
Easy to connect and easy to use, these expansion modules snap into place with an integrated, hands-free latching system. Once in place and latched, the system becomes one solid, rugged unit even without the assistance of DIN rail. Each new I/O module connected will be autoconfigured in the software and ready to use in your program. If you need to separate the expansion modules, simply use the quick release tabs to unlatch and remove.
Discrete Input Modules
 BX-08NF3 [
$51.00
]
| BRX discrete input module, 8-point, 3-5 VDC, sinking/sourcing, 2 isolated common(s), 4 point(s) per common. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
[spec PDF] |
 BX-08ND3 [
$52.00
]
| BRX discrete input module, 8-point, 12-24 VDC, sinking/sourcing, 2 isolated common(s), 4 point(s) per common. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
|
|
 BX-08NB [
$52.00
]
| BRX discrete input module, 8-point, 12-24 VAC, 2 isolated common(s), 4 point(s) per common. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-08NA [
$56.00
]
| BRX discrete input module, 8-point, 120-240 VAC, 2 isolated common(s), 4 point(s) per common. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-12ND3 [
$69.00
]
| BRX discrete input module, 12-point, 12-24 VDC, sinking/sourcing, 3 isolated common(s), 4 point(s) per common. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-12NB [
$54.00
]
| BRX discrete input module, 12-point, 12-24 VAC, 3 isolated common(s), 4 point(s) per common. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-12NA [
$73.00
]
| BRX discrete input module, 12-point, 120-240 VAC, 3 isolated common(s), 4 point(s) per common. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-16ND3 [
$75.00
]
| BRX discrete input module, 16-point, 12-24 VDC, sinking/sourcing, 4 isolated common(s), 4 point(s) per common. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-16NB [
$65.00
]
| BRX discrete input module, 16-point, 12-24 VAC, 4 isolated common(s), 4 point(s) per common. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-16NF3 [
$73.00
]
| BRX discrete input module, 16-point, 2-5 VDC, sinking/sourcing/TTL, 4 isolated common(s), 4 point(s) per common. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-16NA [
$81.00
]
| BRX discrete input module, 16-point, 120-240 VAC, 4 isolated common(s), 4 point(s) per common. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-16NN [
$83.00
]
| BRX discrete input module, 16-point, 48 VDC, sinking/sourcing, 4 common(s), 4 isolated common(s), 4 point(s) per common. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
[specs PDF] |
 BX-32ND3 [
$148.00
]
| BRX discrete input module, 32-point, 12-24 VDC, sinking/sourcing, 4 isolated common(s), 8 point(s) per common. Requires ZIPLink pre-wired cable. |
|
|
|
[specs PDF] |
Discrete Output Modules
 BX-05TRS [
$73.00
]
| BRX relay output module, 5-point, 6-48 VDC/24-240 VAC, (5) Form C, 5 isolated common(s), 1 point(s) per common, 2A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-05TRS-1 [
$90.00
]
|
BRX relay output module, 5-point, 12-48 VDC/24-240 VAC/100-125 VDC, (5) Form C, 5 isolated common(s), 1 point(s) per common, 8A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit.
|
|
|
|
|
[specs PDF] |
 BX-08TD1 [
$63.00
]
| BRX discrete output module, 8-point, 6-24 VDC, sinking, 2 isolated common(s), 4 point(s) per common, 0.5A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-08TD2 [
$67.00
]
| BRX discrete output module, 8-point, 6-24 VDC, sourcing, 2 isolated common(s), 4 point(s) per common, 0.5A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-08TR [
$73.00
]
| BRX relay output module, 8-point, 6-48 VDC/24-240 VAC, (8) Form A, 2 isolated common(s), 4 point(s) per common, 2A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-08TRZ [
$82.00
]
|
BRX relay output module, 8-point, 12-48 VDC/24-240 VAC, (8) Form A (SPST) no-suppression, 2 isolated common(s), 4 point(s) per common, 2A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables.
|
|
|
|
|
[specs PDF] |
 BX-08TA [
$117.00
]
| BRX discrete output module, 8-point, 120-240 VAC, 2 isolated common(s), 4 point(s) per common, 0.5A/point, 2A/common. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables.. |
|
|
|
|
[specs PDF] |
 BX-12TD1 [
$98.00
]
| BRX discrete output module, 12-point, 6-24 VDC, sinking, 3 isolated common(s), 4 point(s) per common, 0.5A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-12TD2 [
$90.00
]
| BRX discrete output module, 12-point, 6-24 VDC, sourcing, 3 isolated common(s), 4 point(s) per common, 0.5A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-12TR [
$98.00
]
| BRX relay output module, 12-point, 6-48 VDC/24-240 VAC, (12) Form A, 3 isolated common(s), 4 point(s) per common, 2A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-12TA [
$137.00
]
| BRX discrete output module, 12-point, 120-240 VAC, 3 isolated common(s), 4 point(s) per common, 0.5A/point, 2A/common. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-16TD1 [
$105.00
]
| BRX discrete output module, 16-point, 6-24 VDC, sinking, 4 isolated common(s), 4 point(s) per common, 0.5A/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-16TD2 [
$105.00
]
| BRX discrete output module, 16-point, 6-24 VDC, sourcing, 4 isolated common(s), 4 point(s) per common, 0.5A/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-16TDY2 [
$99.00
]
| BRX discrete output module, 16-point, 12-24 VDC, sourcing, 4 common(s), 4 isolated common(s), 4 point(s) per common, 1A/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-16TN2 [
$103.00
]
| BRX discrete output module, 16-point, 12-24 VDC, sourcing, 4 common(s), 4 isolated common(s), 4 point(s) per common, 1A/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-16TD2W [
$189.00
]
| BRX discrete output module, 16-point, 12-24 VDC, sourcing, 4 common(s), 4 isolated common(s), 4 point(s) per common, 2A/point, overcurrent, overload and wire-break protection. |
|
|
|
|
[specs PDF] |
 BX-16TF2 [
$98.00
]
|
BRX discrete output module, 16-point, 2-5 VDC, sourcing/TTL, 4 isolated common(s), 4 point(s) per common, 20 mA/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables.
|
|
|
|
|
[specs PDF] |
 BX-16TR [
$111.00
]
| BRX relay output module, 16-point, 6-48 VDC/24-240 VAC, (16) Form A, 4 isolated common(s), 4 point(s) per common, 2A/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-16TRZ [
$118.00
]
|
BRX relay output module, 16-point, 12-48 VDC/24-240 VAC, (16) Form A (SPST) no-suppression, 4 isolated common(s), 4 point(s) per common, 2A/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables.
|
|
|
|
|
[specs PDF] |
 BX-32TD1 [
$150.00
]
| BRX discrete output module, 32-point, 12-24 VDC, sinking, 4 isolated common(s), 8 point(s) per common, 0.5A/point. Requires ZIPLink pre-wired cable. |
|
|
|
|
[specs PDF] |
 BX-32TD2 [
$149.00
]
| BRX discrete output module, 32-point, 12-24 VDC, sourcing, 4 isolated common(s), 8 point(s) per common, 0.5A/point. Requires ZIPLink pre-wired cable. |
|
|
|
|
[specs PDF] |
Discrete Combo Input / Output Modules
 BX-08CD3R [
$73.00
]
| BRX discrete combo module, Input: 4-point, 12-24 VDC, sinking/sourcing, Output: 4-point, 6-48 VDC/24-240 VAC, (1) Form A (SPST) relay, 2A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-8NN8TN2 [
$113.00
]
| BRX discrete combo module, Input: 8-point, 48 VDC, sinking/sourcing, Output: 8-point, 48 VDC, sourcing, 1A/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-12CD3D1 [
$73.00
]
| BRX discrete combo module, Input: 8-point, 12-24 VDC, sinking/sourcing, Output: 4-point, 6-24 VDC, sinking, 0.5A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-12CD3D2 [
$73.00
]
| BRX discrete combo module, Input: 8-point, 12-24 VDC, sinking/sourcing, Output: 4-point, 6-24 VDC, sourcing, 0.5A/point. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-16CD3D1 [
$90.00
]
| BRX discrete combo module, Input: 8-point, 12-24 VDC, sinking/sourcing, Output: 8-point, 6-24 VDC, sinking, 0.5A/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-16CD3D2 [
$97.00
]
| BRX discrete combo module, Input: 8-point, 12-24 VDC, sinking/sourcing, Output: 8-point, 6-24 VDC, sourcing, 0.5A/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables. |
|
|
|
|
[specs PDF] |
 BX-16CF3F2 [
$82.00
]
|
BRX discrete combo module, Input: 8-point, 2-5 VDC, sinking/sourcing/TTL, Output: 8-point, 2-5 VDC, sourcing/TTL, 20 mA/point. Requires BX-RTB10, BX-RTB10-1 or BX-RTB10-2 terminal block kit or ZIPLink pre-wired cables.
|
|
|
|
|
[specs PDF] |
Analog Input Modules
 BX-04ADM-1 [
$182.00
]
BRX analog input module, 4-channel,
| current, 16-bit, input current signal range(s) of 0-20 mA, 4-20 mA, external 24 VDC required. |
|
|
|
|
|
|
|
[specs PDF] |
 BX-04AD-1 [
$230.00
]
BRX analog input module, 4-channel,
| current, 16-bit, input current signal range(s) of 0-20 mA, 4-20 mA, external 24 VDC required. |
|
|
|
|
|
|
[specs PDF] |
 BX-16AD-1 [
$363.00
]
BRX analog input module, 16-channel,
| current, input current signal range(s) of 0-20 mA, 4-20 mA, external 24 VDC required. |
|
|
|
|
|
|
[specs PDF] |
 BX-04AD-2B [
$230.00
]
BRX analog input module, 4-channel,
| voltage, 16-bit, input voltage signal range(s) of 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC, external 24 VDC required. |
|
|
|
|
|
|
[specs PDF] |
 BX-08AD-1 [
$255.00
]
| BRX analog input module, 8-channel, current, 16-bit, input current signal range(s) of 0-20 mA, 4-20 mA, external 24 VDC required. |
|
|
|
|
[specs PDF] |
 BX-08AD-2B [
$255.00
]
| BRX analog input module, 8-channel, voltage, 16-bit, input voltage signal range(s) of 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC, external 24 VDC required. |
|
|
|
|
[specs PDF] |
 BX-16AD-2B [
$363.00
]
BRX analog input module, 16-channel,
| voltage, input voltage signal range(s) of 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC, external 24 VDC required. |
|
|
|
|
|
|
[specs PDF] |
Universal Inputs
 BX-04AD-3 [
$193.00
]
BRX analog input module,
4-channel, current/voltage, 16-bit, input current signal range(s) of 0-20 mA, 4-20 mA, +/- 20 mA, input voltage signal range(s) of 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC.. |
|
|
|
|
|
[specs PDF]
|
 BX-08AD-3 [
$225.00
]
BRX analog input module,
| 8-channel, current/voltage, 16-bit, input current signal range(s) of 0-20 mA, 4-20 mA, +/- 20 mA, input voltage signal range(s) of 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC. |
|
|
|
|
|
[specs PDF] |
Analog Output Modules
 BX-04DA-1 [
$269.00
]
BRX analog output module, 4-channel,
| current, 16-bit, output current signal range(s) of 0-20 mA and 4-20 mA, external 24 VDC required. |
|
|
|
|
|
|
[specs PDF] |
 BX-08DA-1 [
$350.00
]
| BRX analog output module, 8-channel, current, 16-bit, output current signal range(s) of 0-20 mA an 4-20 mA, external 24 VDC required. |
|
|
|
|
[specs PDF] |
 BX-04DA-2B [
$269.00
]
BRX analog output module, 4-channel,
| voltage, 16-bit, output voltage signal range(s) of 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC, external 24 VDC required. |
|
|
|
|
|
|
[specs PDF] |
 BX-08DA-2B [
$350.00
]
| BRX analog output module, 8-channel, voltage, 16-bit, output voltage signal range(s) of 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC, external 24 VDC required. |
|
|
|
|
[specs PDF] |
Universal Outputs
 BX-04DA-3 [
$244.00
]
BRX analog output module,
4-channel, current/voltage, 16-bit, output current signal range(s) of 0-20 mA, +/- 20 mA and 4-20 mA, output voltage signal range(s) of 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC. |
|
|
|
|
|
[specs PDF] |
 BX-08DA-3 [
$311.00
]
BRX analog output module,
| 8-channel, current/voltage, 16-bit, output current signal range(s) of 0-20 mA, +/- 20 mA and 4-20 mA, output voltage signal range(s) of 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC. |
|
|
|
|
|
[specs PDF] |
Analog Combo Input / Output Modules
 BX-4AD2DA-1 [
$378.00
]
BRX analog combo module,
| Input: 4-channel, current, 0-20 mA and 4-20 mA, Output: 2-channel, current, 0-20 mA and 4-20 mA. |
|
|
|
|
|
|
[specs PDF] |
 BX-2AD2DA-1 [
$309.00
]
| BRX analog combo module, Input: 2-channel, current, 0-20 mA and 4-20 mA, Output: 2-channel, current, 0-20 mA and 4-20 mA. |
|
|
|
|
[specs PDF] |
 BX-4AD2DA-2B [
$378.00
]
| BRX analog combo module, Input: 4-channel, voltage, 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC, Output: 2-channel, voltage, 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC. |
|
|
|
|
[specs PDF] |
 BX-2AD2DA-2B [
$309.00
]
| BRX analog combo module, Input: 2-channel, voltage, 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC, Output: 2-channel, voltage, 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC. |
|
|
|
|
[specs PDF] |
Universal Combo Inputs/Outputs
 BX-2AD2DA-3 [
$284.00
]
BRX analog combo module,
Input: 2-channel, current/voltage, 0-20 mA, +/- 20 mA and 4-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC, Output: 2-channel, current/voltage, 0-20 mA, +/- 20 mA and 4-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC. |
|
|
|
|
|
[specs PDF] |
 BX-4AD4DA-3 [
$349.00
]
BRX analog combo module,
| Input: 4-channel, current/voltage, 0-20 mA, +/- 20 mA and 4-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC, Output: 4-channel, current/voltage, 0-20 mA, +/- 20 mA and 4-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC. |
|
|
|
|
|
[specs PDF] |
Temperature Input Modules
 BX-04THM [
$241.00
]
| BRX temperature input module, thermocouple, 4-channel, 16-bit resolution, input thermocouple type(s): J, E, K, R, S, T, B, N, C. (1) BX-RTB10 screw terminal block included. |
|
|
|
|
[specs PDF] |
 BX-08THM [
$269.00
]
BRX temperature input module,
| thermocouple, 8-channel, 16-bit resolution, input thermocouple type(s): J, E, K, R, S, T, B, N, C. (1) BX-RTB10 screw terminal block kit included. |
|
|
|
|
|
[specs PDF] |
 BX-06RTD [
$255.00
]
| BRX temperature input module, RTD, |
| 6-channel, 16-bit resolution, input RTD type(s): Pt100, JPt100, Cu10, Cu25, Pt1000 and Ni120. (1) BX-RTB10 screw terminal block kit included. |
|
|
|
|
|
|
[specs PDF] |
 BX-08NTC [
$269.00
]
| BRX temperature input module, thermistor, 8-channel, 16-bit resolution, input thermistor type(s): 2252, 10K-AN Type 3, 10K-CP Type 2, 5K, 3K and 1.8K ohm. (1) BX-RTB10 screw terminal block included. |
|
|
|
|
|
[specs PDF] |
Universal Temperature Inputs
 BX-04UT [
$223.00
]
BRX universal temperature input module,
RTD/thermocouple/thermistor, 4-channel, 24-bit resolution. Requires BX-RTB05, BX-RTB05-1 or BX-RTB05-2 terminal block kit. |
|
|
|
|
|
[specs PDF] |
 BX-08UT [
$248.00
]
BRX universal temperature input module,
| RTD/thermocouple/thermistor, 8-channel, 24-bit resolution. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit. |
|
|
|
|
|
[specs PDF] |
Temperature Combo Modules
 BX-4RTD4DA-1 [
$472.00
]
BRX temperature combo module,
input: 4-channel, RTD, input RTD type(s): Pt100, Pt1000, JPt100, Cu10, Cu25 and Ni120, Output: 4-channel, current, 0-20 mA and 4-20 mA (1) BX-RTB10 screw terminal block kit included. |
|
|
|
|
|
[specs PDF]
|
 BX-4THM4DA-1 [
$472.00
]
BRX temperature combo module,
| input: 4-channel, thermocouple, input thermocouple type(s): J, E, K, R, S, T, B, N, C, Output: 4-channel, current, 0-20 mA and 4-20 mA. (1) BX-RTB10 screw terminal block kit included. |
|
|
|
|
|
[specs PDF] |
Universal Temperature Combo Inputs/Outputs
 BX-4UT4DA-3 [
$436.00
]
BRX universal temperature combo module,
| Input: 4-channel, RTD/thermocouple/thermistor, Output: 4-channel, current/voltage. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit. |
|
|
|
|
|
|
[specs PDF] |
 BX-4UT4TD1 [
$248.00
]
BRX universal temperature combo module,
| Input: 4-channel, RTD/thermocouple/thermistor, Output: 4-point, sinking, 12-24 VDC. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit. |
|
|
|
|
|
[specs PDF] |
 BX-4UT4TD2 [
$248.00
]
BRX universal temperature combo module,
| Input: 4-channel, RTD/thermocouple/thermistor, Output: 4-point, sourcing, 12-24 VDC. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit. |
|
|
|
|
|
[specs PDF] |
 BX-4UT4TR [
$248.00
]
BRX universal temperature combo module,
| Input: 4-channel, RTD/thermocouple/thermistor, Output: 4-point, relay, 24-240 VAC/12-48 VDC, (4) Form A (SPST) relays. Requires BX-RTB08, BX-RTB08-1 or BX-RTB08-2 terminal block kit. |
|
|
|
|
|
[specs PDF] |
 BX-SERIO [
$219.00
]
BRX Communication Module,
| for all BRX PLCs, 4 ports, buffered, (4) RS-232/RS-485 (3-pin terminal), (4) BX-RTB03S terminal blocks included. |
|
|
|
|
|
[specs PDF] |
 BX-SERIO-2[
$215.00
]
BRX communication module,
| Do-more protocol, Modbus RTU and ASCII, 4 ports, buffered, (4) RS-232 (5-pin terminal) port(s). For use with all BRX MPUs. (4) BX-RTB05S terminal blocks included. |
|
|
|
|
|
[specs PDF] |
 BX-SERIO-4[
$199.00
]
BRX communication module,
| Do-more protocol, Modbus RTU and ASCII, 4 ports, buffered, (4) RS-422 (5-pin terminal) port(s). For use with all BRX MPUs. (4) BX-RTB05S terminal blocks included. |
|
|
|
|
|
[specs PDF] |
 BX-HSIO1 [
$242.00
]
BRX High-speed Pulse Combo Module,
| 250 kHz maximum switching frequency, input: 8-point, 9-30 VDC, sinking/sourcing, Output: 8-point, 5-36 VDC, sinking, 1A/point. |
|
|
|
|
|
[specs PDF] |
 BX-HSIO2 [
$242.00
]
BRX High-speed Pulse Combo Module,
| 250 kHz maximum switching frequency, input: 8-point, 9-30 VDC, sinking/sourcing, Output: 8-point, 5-36 VDC, sourcing, 1A/point. |
|
|
|
|
|
[specs PDF] |
 BX-HSIO4 [
$274.00
]
BRX High-speed Pulse Combo Module,
|
2 MHz maximum switching frequency, 8 high-speed input point(s), sinking/sourcing/TTL, differential and single-ended encoder input(s), 8 high-speed output point(s), sinking/sourcing/TTL, differential and single-ended output(s).
|
|
|
|
|
|
[specs PDF] |
Loading...
BX-08SIM
BX-APAD
Safe &
Secure
Updating...
