BRX PLCs are Do-more® Driven: 10-point Series
10-point Series

The BRX 10-point series includes all the standard features plus 10 built-in discrete I/O points (AC, DC and relay options available). With the exception of models with relay outputs, all of the on-board discrete I/O can be configured for current-protected high-speed functions up to 250 kHz. Relay output models have high-speed inputs only. Software-selectable analog I/O with your choice of 0-5VDC, 0-10VDC, +/-5VDC, +/-10VDC, 4-20mA or +/-20mA input/output ranges and a 10/100 Mbps Ethernet port are available on select units. The 10-point series is also expandable with up to 2 additional I/O modules.

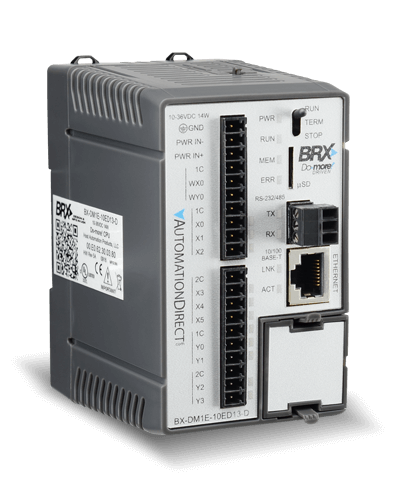

  • BX-DM1E-10ED13-DBX-DM1E-10ED13-D [ $382.00 ]
    BRX Do-more PLC, 12-24 VDC required, serial and Ethernet ports, microSD card slot, Discrete Input: 6-point, AC/DC, Analog Input: 1-channel, current/voltage, Discrete Output: 4-point, sinking, Analog Output: 1-channel, current/voltage.
    [spec PDF]
  • BX-DM1E-10ED23-DBX-DM1E-10ED23-D [ $381.00 ]
    BRX Do-more PLC, 12-24 VDC required, serial and Ethernet ports, microSD card slot, Discrete Input: 6-point, AC/DC, Analog Input: 1-channel, current/voltage, Discrete Output: 4-point, sourcing, Analog Output: 1-channel, current/voltage.
    [specs PDF]
  • BX-DM1E-10ER3-DBX-DM1E-10ER3-D [ $397.00 ]
    BRX Do-more PLC, 12-24 VDC required, serial and Ethernet ports, microSD card slot, Discrete Input: 6-point, AC/DC, Analog Input: 1-channel, current/voltage, Discrete Output: 4-point, relay, Analog Output: 1-channel, current/voltage.
    [specs PDF]
  • BX-DM1E-10AR3-DBX-DM1E-10AR3-D [ $389.00 ]
    BRX Do-more PLC, 12-24 VDC required, serial and Ethernet ports, microSD card slot, Discrete Input: 6-point, AC, Analog Input: 1-channel, current/voltage, Discrete Output: 4-point, relay, Analog Output: 1-channel, current/voltage.
    [specs PDF]
  • BX-DM1-10ED1-DBX-DM1-10ED1-D [ $314.00 ]
    BRX Do-more PLC, 12-24 VDC required, serial port, microSD card slot, Discrete Input: 6-point, AC/DC, Discrete Output: 4-point, sinking.
    [specs PDF]
  • BX-DM1-10ED2-DBX-DM1-10ED2-D [ $314.00 ]
    BRX Do-more PLC, 12-24 VDC required, serial port, microSD card slot, Discrete Input: 6-point, AC/DC, Discrete Output: 4-point, sourcing.
    [specs PDF]
  • BX-DM1-10ER-DBX-DM1-10ER-D [ $307.00 ]
    BRX Do-more PLC, 12-24 VDC required, serial port, microSD card slot, Discrete Input: 6-point, AC/DC, Discrete Output: 4-point, relay.
    [specs PDF]
  • BX-DM1-10AR-DBX-DM1-10AR-D [ $199.00 ]
    BRX Do-more PLC, 12-24 VDC required, serial port, microSD card slot, Discrete Input: 6-point, AC, Discrete Output: 4-point, relay.
    [specs PDF]
  • BX-RTB10BX-RTB10 [ $21.50 ]
    BRX terminal block kit, 90-degree screw type. For use with BRX 10-point PLCs and BRX 16-point expansion modules. Includes (2) 10-pin 3.8mm terminal blocks.
    [specs PDF]
  • BX-RTB10-1BX-RTB10-1 [ $24.00 ]
    BRX terminal block kit, 180-degree spring clamp. For use with BRX 10-point PLCs and 16-point expansion modules. Includes (2) 10-pin 3.8mm terminal blocks.
    [specs PDF]
  • BX-RTB10-2BX-RTB10-2 [ $27.00 ]
    BRX terminal block kit, 180-degree screw type. For use with BRX 10-point PLCs and 16-point expansion modules. Includes (2) 10-pin 3.8mm terminal blocks.
    [specs PDF]
