BRX Home BRX - Your Automation Foundation Configure a BRX

Features
10 ways it's better with BRX PLCs! Communication Options IIoT Edge Device - Your low cost link to Industry 4.0Integrated Motion on Multiple Levels Not Your Everyday Analog Security Simple Data Logging/Advanced Data Control Fortified with American Pride Easy Migration Motion Control/Positioning made easy! BRX IIoT in Motion
Free Software
What's New with Do-more Designer Dashboard - Easy Navigation Simulator IIoT WebServer Connectivity Motion on Multiple Levels Simple Data Logging Data Delivered Easy PID Video Help Auto-Discover I/O Powerful Math Trouble free Troubleshooting DirectLOGIC Migration Free Online Training Download the Free Software
Hardware
Hardware Overview M Series CPUs (no I/O) 10-point Series CPUs 18-point Series CPUs 36-point Series CPUs Ethernet Remote I/O Expansion Modules Pluggable Option Modules Connection Options Spare Parts Go to ZIPLink Selector Tool
Instruction Set
Videos

Do-more® Designer Software: Optimized Instruction Set -
Currently over 200 instructions and counting!

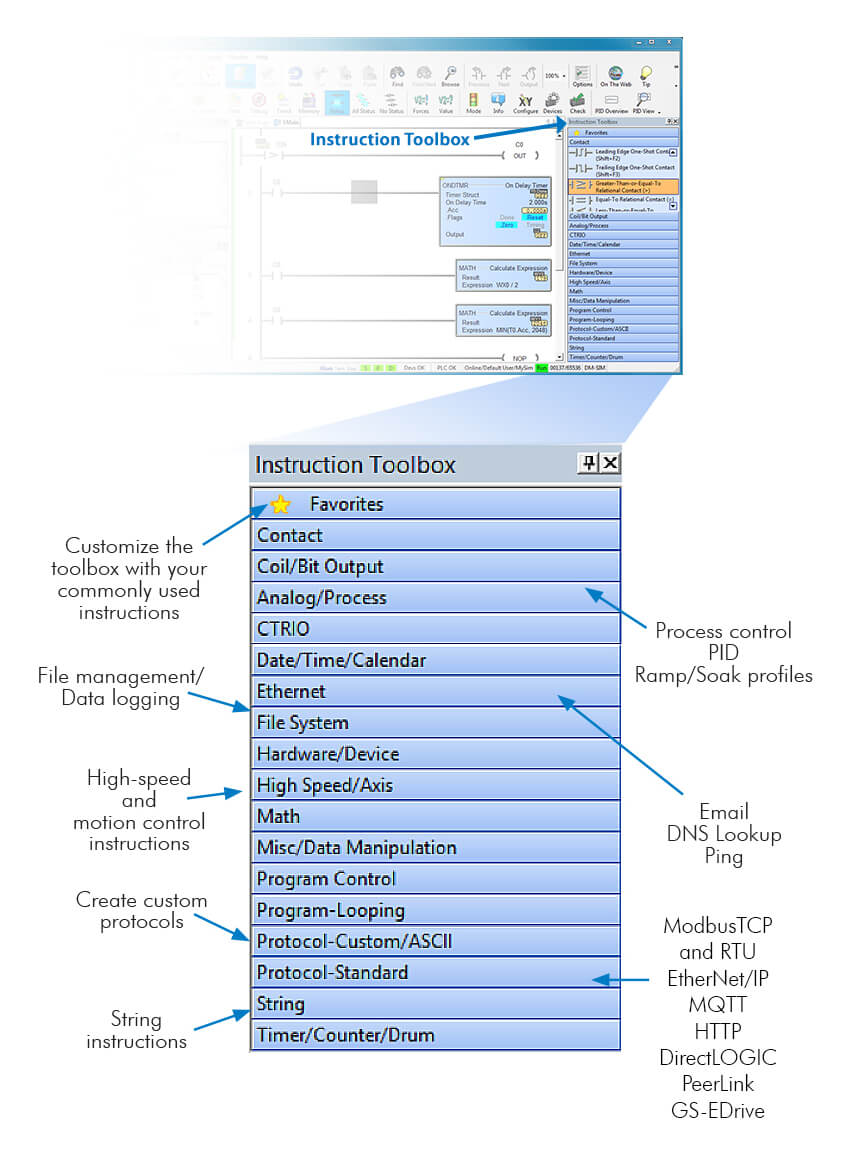

Instruction Toolbox

Available Instructions:

CONTACTS
--|  |-- Normally Open
Normally Closed
Leading Edge One-Shot
Trailing Edge One-Shot
--|≥|-- Greater-Than-or-Equal-To
--|=|-- Equal-To
--|≤|-- Less-Than-or-Equal-To
--|<|-- Less-Than
--|≠|-- Not-Equal-To
--|>|-- Greater-Than
--|Δ|-- Delta

Leading Edge One-Shot on Power Flow

Trailing Edge One-Shot on Power Flow

Invert Power Flow
COIL / BIT OUTPUTS
DEBOUNCE Reduce Discrete Input Chatter
END End Code Block
FLASHER Cycle Output ON/OFF
INI Immediate Discrete Input
ND Trailing Edge One-Shot
NOP Null Operation
OUT Coil Write Bit
OUTI Coil Out Immediate Bit
PD Leading Edge One-Shot
PONOFF Push On/Push Off
RST Reset Bit
RSTI Reset Immediate Bit
RSTR Reset Range
SET Coil Set Bit
SETI Coil Set Immediate Bit
SETR Set Range
SR Shift Register
TIMEDOUT Timed Output
ANALOG / PROCESS
ALDEV Deviation Alarm
ALHILO High/Low Alarm
ALRATE Rate of Change Alarm
CLAMP Limit Range
DEADBAND Set Outside Deadband
FILTER First Order Filter
INTEGRAT Integrate Over Time
PID Closed Loop Controller
PIDINIT Set PID Tuning Constants
RAMPSOAK Ramp Soak Profile
RANGECHECK Value In/Out of Range
SCALE Scale Value
SLOPE Calculate Slope
TIMEPROP Time Proportional Control
PROTOCOL STANDARD
DLRX DirectLOGIC Network Read
DLWX DirectLOGIC Network Write
EIPMSG Send EtherNet/IP Message
FTPGET Retrieve File FROM Remote
FTPPUT Store File TO Remote
GSREGRD GS E-Drive Register Read
GSREGWR GS E-Drive Register Write
HTTPCMD HTTP Request / Response with server
JSONBUILD Build JSON Record
JSONPARSE Parse JSON Text
MQTTPUB IoT Publish MQTT Topics
MQTTSUB IoT Subscribe MQTT Topics
MRX Modbus Network Read
MWX Modbus Network Write
PEERLINK Share Data w/PLCs
RX Do-more Network Read
WX Do-more Network Write
DATE / TIME / CALENDAR
DT2EPOCH Convert Date/Time to Epoch
DTCMP Compare Date/Time
DTDIFF Difference Between Two Dates/Times
DTOFFSET Add Offset to Date/Time
EPOCH2DT Convert Epoch to Date/Time
NETTIME SNTP Client
SETTIME Set PLC Date/Time
ETHERNET
DMLOGGER Broadcast String to DmLogger.exe
DNSLOOKUP Name to IP Address
EMAIL Send Email
PING Ping Ethernet Device
SETUPIP Setup TCP/IP Parameters
SETUPNOD Setup Ethernet Node Parameters
FILE SYSTEM
BACKUP Create PLC Image File
FILECLOSE Close File
FILECOPY Copy File
FILEDEL Delete File
FILELOG Log to File
FILENEWFLDR Make a New Folder
FILEOPEN Open File
FILEQUERY Query File or Folder Information
FILEREAD Read from File
FILESEEK Seek to Position in File
FILESYSCMD Perform File System Command
FILETRUNC Truncate File
FILEWRITE Write to File
HARDWARE / DEVICE
CLOSE Close Device
DEVCLEAR Clear Device
DEVREAD Read to Device Register
DEVWRITE Write to Device Register
HWINFO Get Hardware Information
OPENDEV Open Device
RD Read from Intelligent Module
SETUPSER Setup Serial Port
WT Write to Intelligent Module
HIGH SPEED / AXIS
AXCAM Axis Electronic Camming
AXCONFIG Axis Configuration
AXFOLLOW Axis Position Following with Offset
AXGEAR Axis Electronic Gearing
AXHOME Axis Perform Home Search
AXJOG Axis Jog Mode
AXPOSSCRV Axis Move to Position Using S-Cruve
AXPOSTRAP Axis Move to Position Using Trapezoid
AXSCRIPT Run a Sequence of Axis Commands
AXRSTFAULT Reset Axis Limit Fault
AXSETPROP Set Axis Properties
AXVEL Axis Set Velocity Mode
PWMOUT Pulse Width Modulated Output
TDODECFG Deconfigure Table Driven Output
TDOPLS Load Programmable Limit Switch Table
TDOPRESET Load Preset Table for Table Driven Output
MATH
DEC Decrement
INC Increment
LERP Linear Interpolation
MATH Calculate Expression
RANDSEED Random Number Seed
MISC / DATA MANIPULATION
BCDTO BCD to Integer/Real
COPY Copy Data
DATAINFO Query Information about Data Memory
DECO Decode to Set Bit
ENCO Encode Bit Position
FIFOLOAD Load First-In-First-Out
FIFORESET Reset FIFO Queue
FIFOUNLOAD Unload First-In-First-Out
GRAY Gray Code to Integer
INIT Initialize Data
ISCLEAR Is Structure Cleared
LIFOLOAD Load Last-In-First-Out
LIFORESET Reset LIFO Queue
LIFOUNLOAD Unload Last-In-First-Out
MEMCLEAR Clear Memory
MEMCOPY Copy Memory Range
MOVE Move Value
MOVEBIT Move Single Bit
MOVER Move Range of Values
PUBLISH Translate from Do-more
REFWRITE Write Value Indirectly
ROTL Rotate Left
ROTR Rotate Right
SEG Hex/BCD to 7 Segment Display
SETNUMBER Set Numeric Range
SUBSCRIB Translate to Do-more
SUMBITS Sum Bits
SWAPB Swap Bytes
TOBCD Integer/Real to BCD
PROGRAM CONTROL
CALL Call Subroutine
ENDC Conditional End of Code-Block
ENTASK Enable Task
EXIT Exit this program
GOTO Go to Label
HALT Halt program or Task
INTCONFIG Configure Interrupts
INTDECONFIG Deconfigure Interrupts
INTRESUME Resume Interrupts
INTSUSPEND Suspend Interrupts
JMP Jump to Stage
JMPI Indexed Jump
LABEL Program Label
REBOOT Reboot PLC
RESTART Restart Program or Task
RET Return Back to CALL
RETC Conditional Return Back to CALL
RUN Run Program
SG Stage
SGCONFIG Converge Multiple Stages to SG
SGDIVRG Jump to Multiple Stages
SGRST Disable Stage
SGRSTI Indexed Disabled Stage
SGRSTR Disable Range of Stages
SGSET Enable Stage
SGSETI Indexed Enable Stage
STOP Switch to Program Mode
SUSPEND Suspend Program or Task
WATCHDOG Force Watchdog Error
YIELD Yield Program or Task
PROGRAM-LOOPING
BREAK Exit Loop
CONTINUE Skip to Loop End
FOR Index Loop
NEXT Index by Step
REPEAT Loop Unitl Condition is Non-Zero
UNTIL Repeat Until Condition is Non-Zero
WEND While End
WHILE Loop with While Condition is Non-Zero
PROTOCOL-CUSTOM/ASCII
CHECKSUM CheckSum Algorithm
OPENTCP Open TCP Connection
PACKETIN Input Data from Packet Device
PACKETOUT Output Data from Packet Device
STREAMIN Stream in Data from Device
STREAMOUT Stream Out Data to Device
TCPLISTEN Start Listening on TCP port
STRING
STR2INT Convert String to Integer
STR2REAL Convert String to Real
STRCASE Covert String to Upper/Lower Case
STRCLEAR Clear Strings
STRCMP String Compare
STRCOPY Copy String
STRCOPYR Copy Range of Strings
STRDELETE Delete Substring
STRFIND Find within a String
STRGETB Get Bytes out of String
STRINSERT Insert Substring
STRPRINT Print a String
STRPUTB Put Bytes into a String
STRSUB Get Sub-String
STRTRIM Trim Whitespace
STRTRUNC Set String Length
TIMER / COUNTER / DRUM
CNT Up Counter
CNTDN Down Counter
COMMON_TIMER All Timer Types
DRUM Timed/Event/Timed-Event Drum
FREQCNT Frequency Counter
FREQTMR Frequency Timer
OFFDTMR Off Delay Timer
ONDTMR On Delay Timer
RSTCT Reset Counter
RSTT Reset Timer
TMR Timer
TMRA Accumulating Timer
TMRADOWN Accumulating Down Timer
TMRAG Global Accumulating Timer
TMRDOWN Down Timer
UDC Up/Down Counter
UDCG Global Up/Down Counter
Contacts
Coils
Process
Protocol Standard
Date, Time & Calendar
Ethernet
File System
Hardware Device
Motion
Math
Data Manipulation
Program Control
Program Looping
Custom Protocol
String
Timer / Counter / Drum



Download the FREE Do-more Designer Software Today!

Contact, Connect & More
Sign Up
to receive:
FREE e-Newsletter
sign up today!
Connect With Us
Social Media Channels:
linkedin    facebook    x    instagram    youtube
Company Information
About Us
Brand Line Card
System Integrator Program
International Sales
Panel Builder Program
Site Help
Company Reviews
Download Price List
Contact Us
Contact Options
1-800-633-0405
Monday - Friday
9 a.m. - 6 p.m. ET
excluding holidays
Career Opportunities
Voted #1 mid-sized employer in Atlanta
We're a great place to work!
Check out our job openings

Need Training?
Affordable Training by Interconnecting Automation
Free Online PLC Training
FREE Video Tutorials
Information & News
What's New / In The News
FREE e-Newsletter
Automation Notebook
Product Literature
White Papers
News, Product and Training Bulletins
E-Books
Shop with confidence
Checked   Safe & Secure
payment methods


We accept VISA, MasterCard, Discover, American Express, PayPal or company purchase orders.
AutomationDirect

BBB Accredited

Voted #1 mid-sized employer in Atlanta
Check out our job openings

Copyright © 1999-2025 AutomationDirect.  ALL RIGHTS RESERVED.
Site Map     Send Us your Feedback     Unsubscribe     Email Preferences     Legal & Business Policies     YouTube Terms of Service
Clear login credentials



Back to Top


spinner Updating...
Info
„
