Use our configuration tool to configure and order.
Protos X AC I/O terminals allow distributed monitoring and control of ON/OFF signals and devices that operate with AC voltages such as power relays and motor starters. Relay I/O terminals switch user-supplied power and allow for higher current loads. Several AC I/O options are available.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Protos X™ I/O AC & Relay Terminals
Category Selection
The Protos X "Xpansion" I/O System ...
using serial Modbus RTU (RS-485) or Ethernet Modbus TCP or Ethernet/IP communications protocols
Protos X "Xpansion" Field I/O
Protos X I/O AC Terminals
Four AC I/O terminals are available.
- 2-point (120-230 VAC and 120 VAC/VDC) discrete input terminals
- 2-point 230 VAC/VDC (0.3A and 2A) solid state relay output terminals

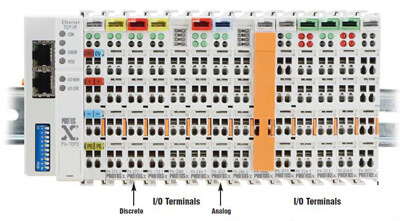

The Protos X compact, modular field I/O system
Allows a user to install remote field I/O devices without having to invest in another controller. The unique slim design and low cost of the Protos X I/O makes it the most practical distributed I/O available today. The ultra-slender form factor makes it easy to install on or near machine or application components, saving time and excess field wiring and speeding up troubleshooting. The ultra-compact design makes it perfect for applications where a typical PLC or I/O solution simply would not fit.
PX-172-2
AC Discrete Input Terminals
2-point (120-230 VAC or 120 VAC/VDC) discrete input terminals
- PX-172-1 (type 2) DC Input Terminal provides two electrically isolated 120-230 VAC inputs with LED status. For use with 4-wire, 3-wire and 2-wire devices.
- PX-172-2 (type 2) DC Input Terminal provides two electrically isolated 120 VAC/VDC inputs with LED status. For use with 4-wire, 3-wire and 2-wire devices.
AC Discrete Input Terminals Overview
PX-272-1
AC Discrete Output Terminals
2-point 230 VAC/VDC (0.3A or 2A) solid state relay output terminals
- PX-272-1 (Solid State Relay Output Terminal provides two 230 VAC/VDC 0.3 A outputs with LED status. For use with 4-wire, 3-wire and 2-wire devices.
- PX-272-2 Solid State Relay Output Terminal provides two 230VAC / 30VDC 2A outputs with LED status. For use with 4-wire, 3-wire and 2-wire devices.
Configure your Protos X Distributed I/O System
Choose system components and send the selected parts directly to your shopping cart
