Protos X™ Bus Expansion and Power Terminals
Category Selection
The Protos X "Xpansion" I/O System ...
using serial Modbus RTU (RS-485) or Ethernet Modbus TCP or Ethernet/IP communications protocols
Protos X "Xpansion" Field I/O
Protos X Bus Power and Expansion
- 24VDC and 120-230 VAC power feeds let you switch voltage on the power bus
- Bus Expansion End terminals and Couplers let you expand the system with ease
A Bus End Terminal, located at the end of a terminal assembly, is required for proper I/O bus communication. Bus expansion is available for the PX-MOD and PX-TCP1 Bus Couplers.
Power Feed Terminals are available to add or change supply power to the Terminal Power Bus. A Power Distribution Terminal provides access to the integrated 24VDC Terminal Power Bus. A Power Separation Terminal is available to provide interruption of power along the Terminal Power Bus.

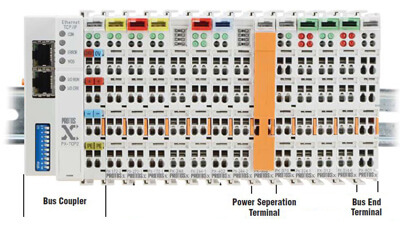

The Protos X compact, modular field I/O system
Allows a user to install remote field I/O devices without having to invest in another controller. The unique slim design and low cost of the Protos X I/O makes it the most practical distributed I/O available today. The ultra-slender form factor makes it easy to install on or near machine or application components, saving time and excess field wiring and speeding up troubleshooting. The ultra-compact design makes it perfect for applications where a typical PLC or I/O solution simply would not fit.
PX-903
Bus End Terminal / Bus Expansion Coupler Terminals
A Bus End Terminal, located at the end of a terminal assembly, is required for proper I/O bus communication
- Bus expansion is available for the PX-MOD and PX-TCP1 Bus Couplers
- Bus expansion requires that a Bus Expansion End Terminal be used in place of the Bus End Terminal and a Bus Expansion Coupler Terminal is used in place of the PX-MOD or PXTCP1 at each expansion assembly
- PX-901 - simple end terminal, required in all systems that are not expanded
- PX-902 - expansion end terminal,
required for all expansion systems.
Always connected to a PX-903. - PX-903 - bus expansion coupler terminal, used in place of bus couplers at each expansion system. Always connected to a PX-902.
Bus End Terminals / Expansion Terminals Overview
PX-940
Power Feed Terminals
Two Power Feed Terminals, 24VDC or 120-230 VAC, are available to add or change supply power to the Terminal Power Bus.
- PX-940 24VDC Power Feed Terminal
- PX-970 120-230 VAC Power Feed Terminal
PX-949
Power Distribution Terminal
A Power Distribution Terminal provides access to the integrated 24VDC Terminal Power Bus. The terminal provides 8 connection points each of 24V and 0V.
- PX-949 24VDC Power Distribution Terminal
PX-908
Power Separation Terminal
A Power Separation Terminal is available to provide interruption of power along the Terminal Power Bus.
- PX-908 Power Separation Terminal
