Protos X™ I/O Analog Terminals
Category Selection
The Protos X "Xpansion" I/O System ...
using serial Modbus RTU (RS-485) or Ethernet Modbus TCP or Ethernet/IP communications protocols
Protos X "Xpansion" Field I/O
Protos X I/O Analog Terminals
18 analog I/O terminals are available.
- 4-20 mA analog inputs: 2, 4 and 8-channel terminals
- +/-10 VDC analog inputs: 2, 4 and 8-channel terminals
- PT100 RTD inputs: 2 and 4-channel terminals
- Type J and Type K thermocouple inputs: 2 and 4-channel terminals
- 4-20 mA analog outputs: 2, 4 and 8-channel terminals
- 0-10 VDC for 2 and 4-channel analog output terminals and +/-10VDC for 8-channel analog output terminal

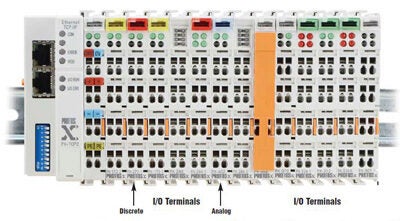

The Protos X compact, modular field I/O system
Allows a user to install remote field I/O devices without having to invest in another controller. The unique slim design and low cost of the Protos X I/O makes it the most practical distributed I/O available today. The ultra-slender form factor makes it easy to install on or near machine or application components, saving time and excess field wiring and speeding up troubleshooting. The ultra-compact design makes it perfect for applications where a typical PLC or I/O solution simply would not fit.
PX-304
Analog Input Terminals
4-20 mA analog inputs or +/-10 VDC analog inputs: 2, 4 and 8-channel terminals
- PX-302, PX-304, PX-308 Analog Input Terminals provide two, four or eight electrically isolated 4-20 mA inputs with 12-bit resolution and Run and Error LED status.
- PX-312, PX-314, PX-318 Analog Input Terminals provide two, four or eight electrically isolated -10 to +10 VDC inputs with 12-bit resolution and LED status
Analog Input Terminals Overview
PX-324-1
RTD Input Terminals
2 and 4-channel PT100 RTD input terminals
- PX-322-1 RTD Input Terminal provides two PT100 RTD inputs with full linearization and LED status
- PX-324-1 RTD Input Terminal provides four PT100 RTD inputs with full linearization and LED status
PX-334-J
Thermocouple Input Terminals
2 and 4-channel Type J or Type K thermocouple input terminals
- PX-332-J, PX-334-J Thermocouple Input Terminals provide two or four Type J thermocouple inputs with full linearization, cold-junction compensation, and LED status
- PX-332-K, PX-334-K Thermocouple Input Terminals provide two or four Type K thermocouple inputs with full linearization, cold-junction compensation, and LED status
PX-418
Analog Output Terminals
4-20 mA analog outputs or 0-10 VDC for 2 and 4-channel and +/-10VDC for 8-channel terminals
- PX-402, PX-404, PX-408 Analog Output Terminals provide two, four or eight electrically isolated, 4-20 mA outputs with 12-bit resolution and Run LED status
- PX-412, PX-414 Analog Output Terminals provide two or four electrically isolated, 0 to 10 VDC outputs with 12-bit resolution, common ground potential, and Run LED status
- PX-418 Analog Output Terminal provides eight electrically isolated, +/-10 VDC outputs with 12-bit resolution, common ground potential, and Run LED status, External 24VDC power required
Configure your Protos X Distributed I/O System
Choose system components and send the selected parts directly to your shopping cart
