Use our selector tool to configure and order.
SureStep series high-bus-voltage, high-torque stepper motors are available with industry-standard NEMA 23 and 34 mounting flanges with single or dual-shaft configurations, and provide holding torque up to 1841 oz-in. The matching AC microstepping drive is powered directly from a 90-240 VAC source.
High Bus Voltage (AC Input) Stepper Motors and Drives
SureStep® high bus voltage microstepping drives and stepper motors

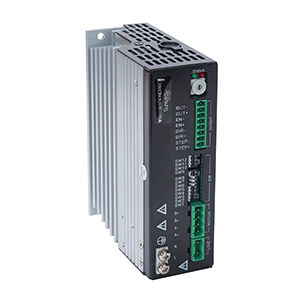

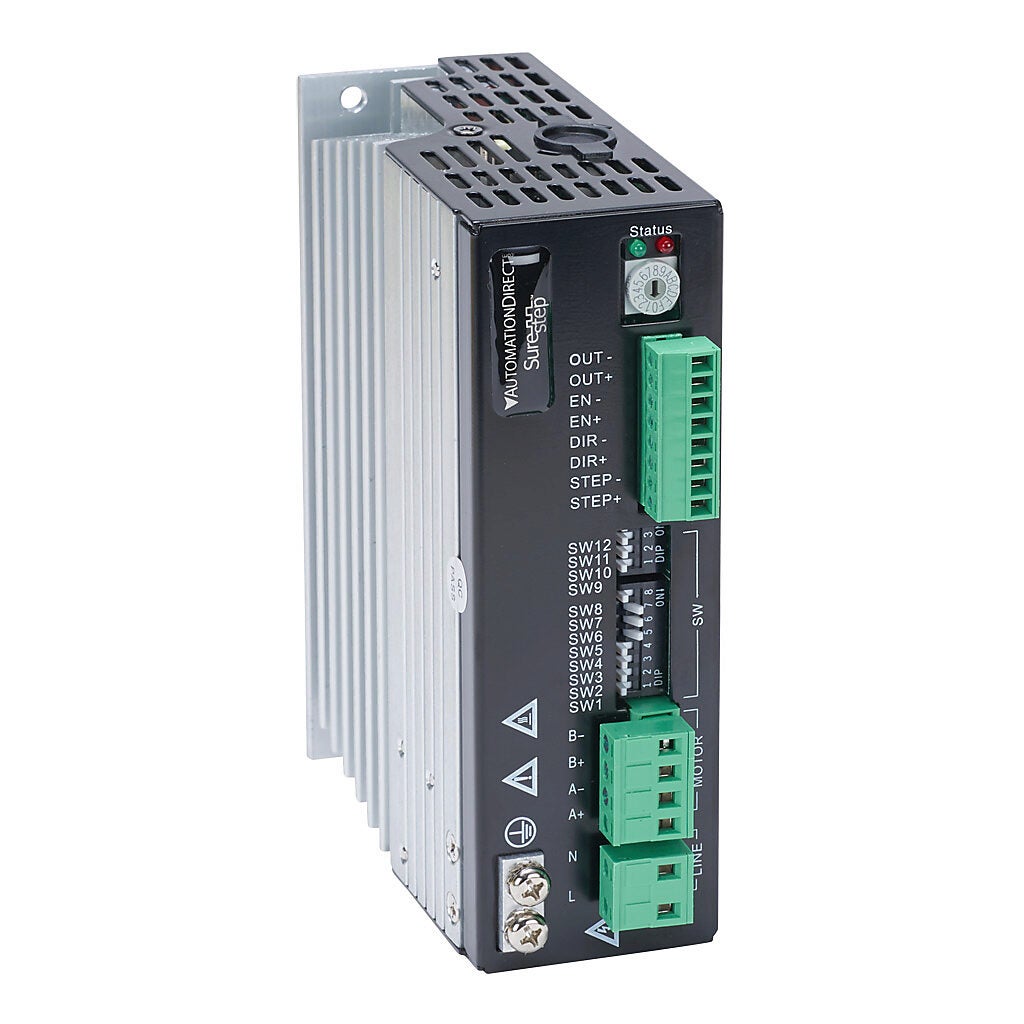

The STP-DRVAC-24025 stepper drive is powered from 90 to 230VAC and has a 340 VDC bus. It is intended for use with step motors designed to handle high bus voltages.
High Bus Voltage Microstepping Drives
High Bus Voltage Microstepping Drives
- Auto-setup measures motor parameters and configures motor current control and anti-resonance gain settings
- Accepts AC input 90 to 240 VAC (selected by switch)
- Output current selectable from 0.6-2.5A/phase (peak of sine)
- Input signal circuit 5-24 VDC nominal, optically isolated, differential
- Switch selectable microstep resolution,
(16 settings from 200 to 25600 steps/rev) - Switch configurable - running current, anti-resonance, input signal filter, step smoothing filter, and self-test
- Motor selection via 16-bit rotary switch
The high bus voltage AC drive is
$222.00
(STP-DRVAC-24025)

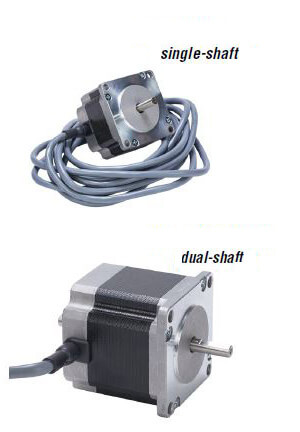

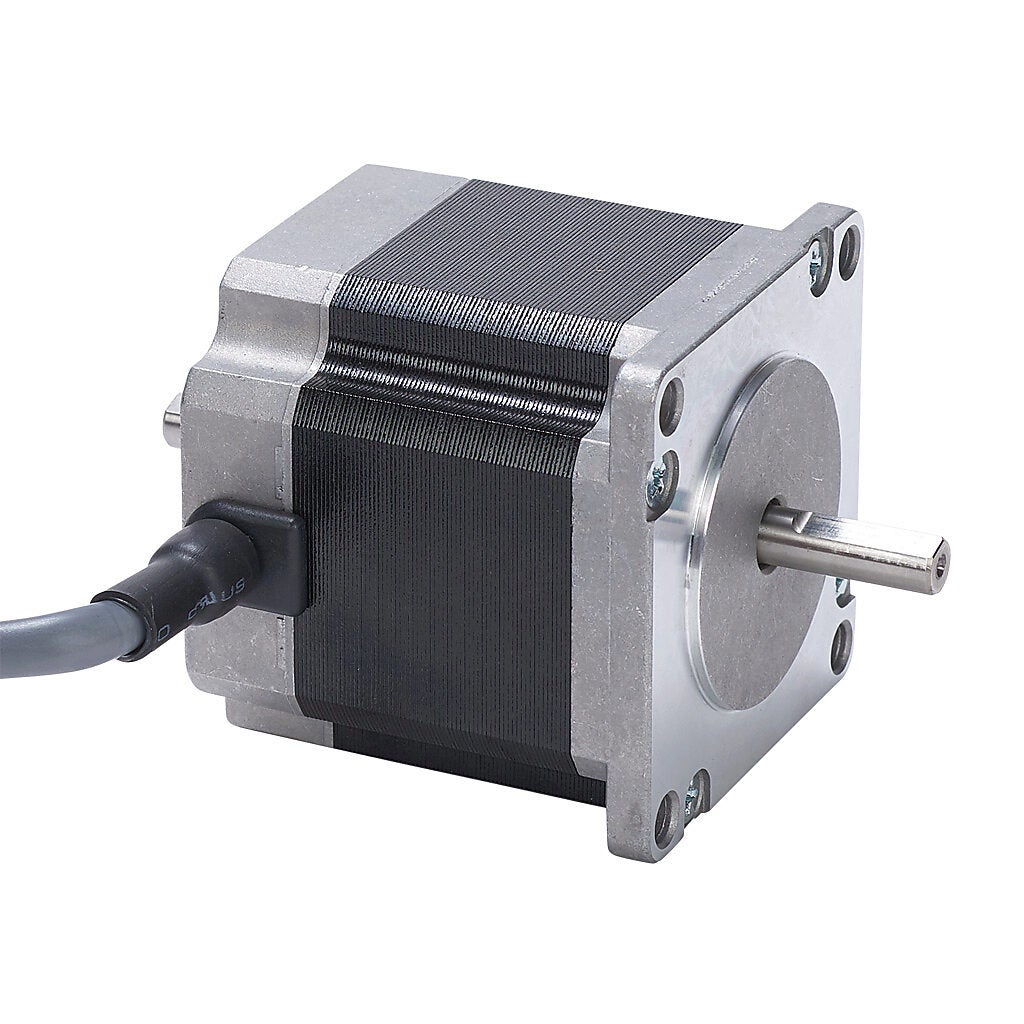

High Voltage Bipolar Stepping Motors (STP-MTRAC-x)
High Voltage Bipolar Stepping Motors (STP-MTRAC-x)
MTRAC motors are designed to work with STP-DRVAC-24025 stepper drives and can withstand high voltages. This allows higher torque, especially at higher speeds.
- High voltage, high torque
- Single-shaft and dual-shaft motor configurations
- Steel rotor case, stainless-steel shaft(s)
- NEMA frame sizes: 23, 34
- Available torque from 75 to 1841 oz-in
- Steps per revolution: 200
- Step angle: 1.8°
- Operating temperature: -20°C to 50°C [-4°F to 122°F]
- IP40 protection rating
- Connection: integrated 10-foot pigtail cable
High voltage motors start at
$63.00
(STP-MTRAC-23044)
