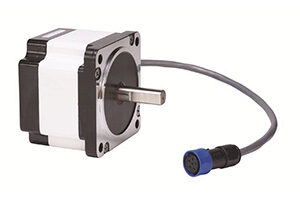

SureStep IP65 Stepper Motors

SureStep high-torque stepping motors are designed to handle a wide range of automation applications such as woodworking, assembly, and test machines. SureStep IP65 rated stepping motors are protected from total dust ingress and from low pressure water jets from any direction making them suitable for many washdown applications.

• NEMA frame stepping motors with 1-ft. cable and locking connector.
• IP65 Motors are available in single-shaft configurations.
• These square-frame or “high-torque” style stepping motors are the latest in bipolar technology, resulting in the best torque to volume ratio.
• NEMA 17, 23, and 34 frame sizes
• Holding torque ranges from 61 to 1288 oz-in.
• Extension cables with IP65 connector: 6, 10, 20 ft lengths.
• Extension high current cables with IP65 connector: 6, 10, 20 ft lengths.

Motor Features

• Square frame step motor style produces high torque
• 2-phase bipolar, 4-lead
• Available in single-shaft models only
• 1.8° per step, 200 Steps per Revolution
• Standard NEMA 17, 23 and 34 motor sizes
• Waterproof white epoxy coating on the motor laminations
• IP65-rated connector
• Special bearings and seals to keep moisture out of the motor
• CE Compliant
