DirectLOGIC (Micro to Small, Brick & Modular PLCs) - Analog I/O
Category Selection
Analog I/O provides the PLC with the data it needs for precision control of a process. To measure the exact level in a holding tank, or to partly open a control valve, analog I/O is required.
DirectLOGIC controllers are not intended for new system development, please consider our latest lines of controllers (Do-more, Productivity, or CLICK) for new installations.
For part listings and specifications, go to Shop Now
DL05 Series PLC Analog I/O
The DL05 PLC requires an analog module to be installed in the PLC expansion slot for applications requiring process control. A selection of voltage, current, and temperature modules are available with up to 16-bit resolution.
- 2-, 4-, or 8-channel analog input or output modules available
- Combination input/output modules can monitor and control from the same module
- Support for a wide range of signals including 4-20 mA, 0-5 VDC, and 0-10 VDC
- 4-channel thermocouple and RTD modules for sensor specific temperature measurements
- DL05 PLC expansion I/O modules can be used with the DL06 PLC and vice versa
DL06 Series PLC Analog I/O
For process control signals, the DL06 PLC requires one or more analog modules to be installed in the PLC's expansion slot(s). A selection of voltage, current, and temperature modules are available with up to 16-bit resolution.
- 2-, 4-, or 8-channel analog input or output modules available
- Combination input/output modules can monitor and control from the same module
- Support for a wide range of signals including 4-20 mA, 0-5 VDC, and 0-10 VDC
- 4-channel thermocouple and RTD modules for sensor specific temperature measurements
- DL06 PLC expansion I/O modules can be used with the DL05 PLC and vice versa

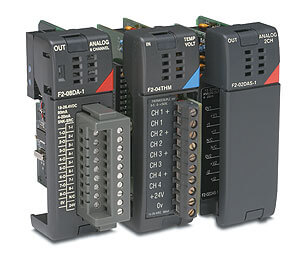

DL205 Series PLC Analog I/O
The DL205 series PLCs support a wide variety of analog modules, including current, voltage, and thermocouple modules, allowing the PLC to connect to almost any device including pressure transmitters, proportional valves, AC drives, panel meters, and more.
- Analog I/O modules support a wide range of signals including 4-20 mA, 0-5 VDC, and 0-10 VDC
- Thermocouple module can also be configured to measure 16-bit input signals of -5 to +5 VDC, 0-156 mv, and -156 mv to +156 mv
DL305 Series PLC Analog I/O
Most DirectLOGIC 305 analog modules have been retired. A 4-channel current/voltage analog input module is available and offers:
- Support for a variety of analog input signals such as 0-20 mA, 4-20 mA, 1-5 VDC and 0-10 VDC
- 12-bit input resolution
DL405 Series PLC Analog I/O
DirectLOGIC 405 analog modules add up to 16 current or voltage analog inputs or up to 16 current or voltage analog outputs (per module) to the DL405 controller.
- Supports a variety of analog I/O signals such as 0-20 mA, 4-20 mA, 1-5 VDC and 0-10 VDC
- Available with 12- or 16-bit input and output resolutions
- 8-channel RTD and thermocouple modules support a variety of temperature measurement devices
