In Depth

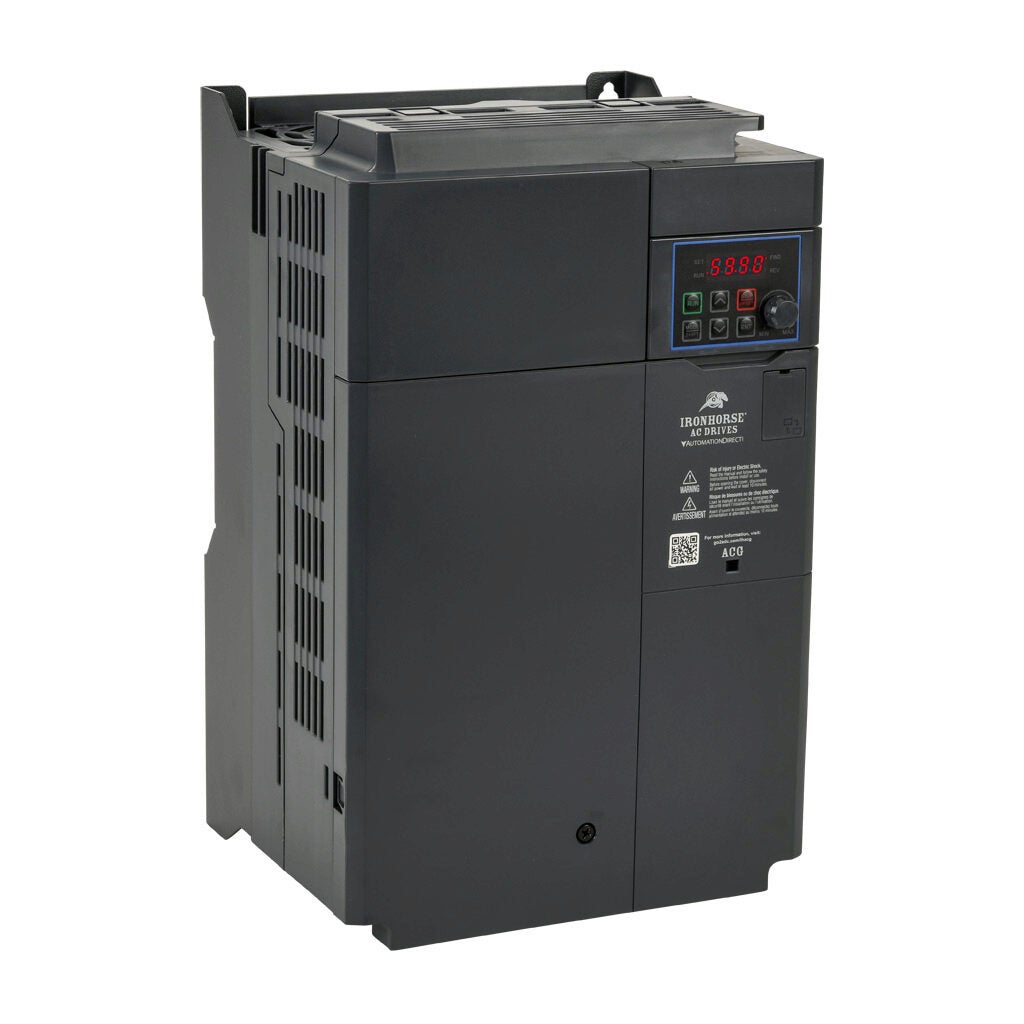

IronHorse ACG Series AC Drives

The ACG series of sensorless vector AC drives bridge the gap between a micro drive and high-performance VFD. The ACG series AC drives have features normally only found on more expensive drives but at a great price.

Starting at $164.00

Already own this type of drive?

IronHorse ACG Series AC Drive Features

These are just some of the features for the ACG series drives. You will be hard-pressed to find a drive for the same price with all of the features it supports.

Single-phase UL Ratings - 230 or 460 VAC input
Supports several different control modes including V/Hz, slip compensation, and sensorless vector
Flexible carrier frequency to 15khz
Output frequency to 400Hz (120Hz sensorless vector)
Built-in RJ45 port for fast & easy programming
Free downloadable software for drive configuration
Local/Remote control mode selection or digital/comm input with Hand/Off/Auto control
Momentary power loss restarts
PCB conformal coating
100kA Short Circuit Current Rating
DC Bus Connection Terminals

Discrete I/O - 5 inputs and 2 relay outputs
Analog I/O - configurable 2 inputs and 1 output (voltage)
2-motor control
Built-in dynamic braking
PID Controller - including sleep and wake
Password protection
High speed communication interfaces with MODBUS RTU built-in, with optional EtherNet/IP and Modbus TCP Communication Card
Fire Mode - Run fire mode during emergencies to have uninterrupted smoke removal and system pressure
2-year warranty
CE, UL, cUL
Also available in NEMA 4X versions as the ACN and ACNND

IronHorse ACG Series AC Drive Feature Callouts

IronHorse ACG Series AC Drive Frame Sizes

Optional Ethernet Capability

A low cost drive doesn't have to sacrifice modern communications. The ACG-ET2 module is easily mounted on the front of the drive, and provides Ethernet communications through Modbus TCP or EtherNet/IP. Dual ports allow point to point or daisy chain wiring configurations. Connect a laptop to the same Ethernet network, and seamlessly connect VFD suite software for easy configuration and monitoring of your ACG drive.

IronHorse ACG Series AC Drive Ethernet Capability

ACG Series Programming

The ACG series VFDs support creating new drive configurations, uploading/downloading new drive configurations, editing/comparing drive configurations and more using VFD Suite (available as a free download). The software is also available on a USB card if needed.

Additional Features of VFD Suite

Utilize Parameter Wizard for easy configuration
Archive/Store multiple drive configurations on your PC
Trend drive operation parameters
Tune the drive PID loop
View real-time key operating parameters
Start/Stop drive and switch directions, provided drive is set up for remote operation
View drive faults

The USB-485M cable allows for a quick and simple connection for programming the ACG series drives. Programming the drives is also supported over Ethernet if an ACG-ET2 module is installed.
