IO-Link 2D Cameras

New!

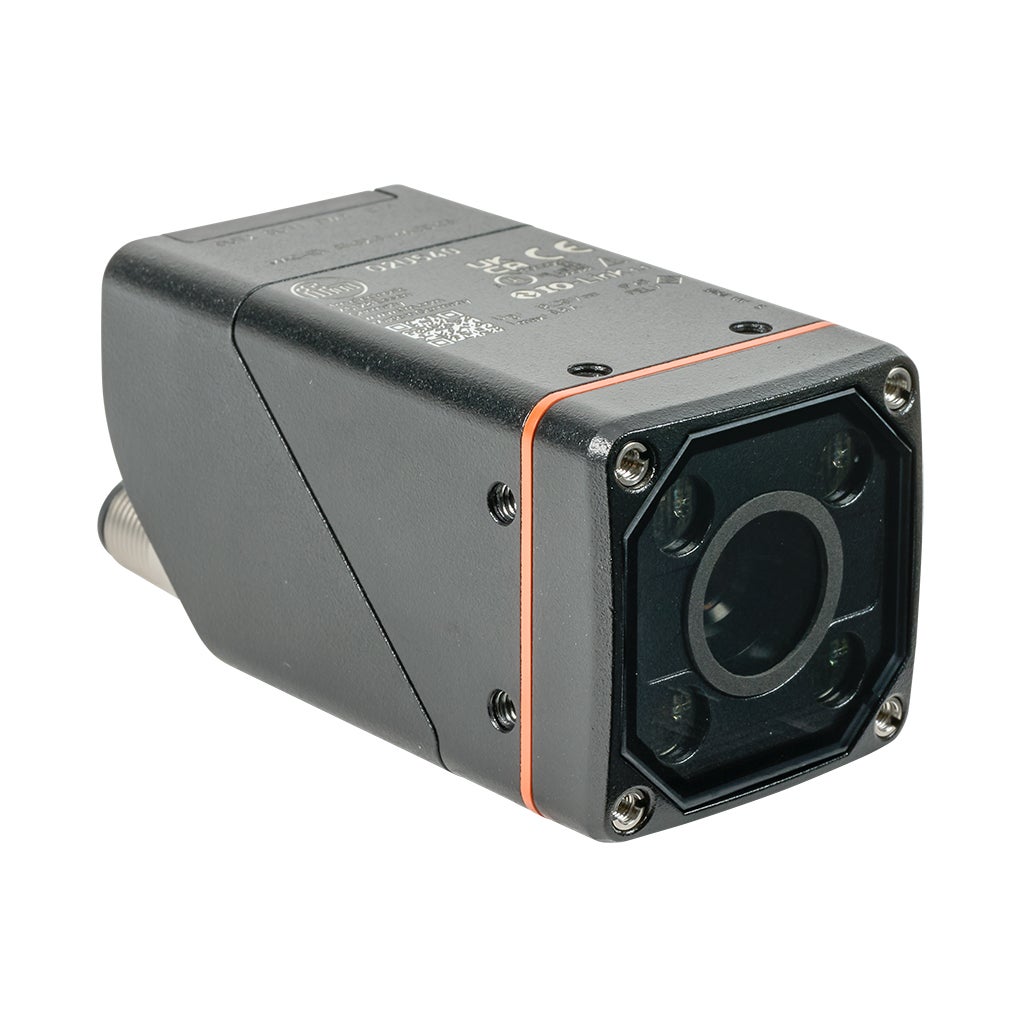

ifm efector O2U540 series machine mount vision cameras combine object recognition, barcode reading, and text recognition in one compact platform for inspection, identification, and traceability applications. The series provides 1280 x 960 CMOS imaging with standard, wide-angle, and super-wide-angle lens options, allowing users to select the viewing area and working distance that best fit the machine layout.

• Keep up with moving and inconsistently oriented products with reading rates up to 40 Hz, support for object speeds up to 7m/s, omnidirectional code reading, and up to 45° inclination to help maintain reliable identification without requiring precise product orientation
• Handle diverse identification requirements with one camera family through support for numerous industrial 1D and 2D codes, multiple OCR fonts, and code-quality standards including ISO/IEC 15415 and 15416, helping consolidate barcode, text, and code-verification tasks on a common platform
• Integrate with both IO-Link and industrial Ethernet architectures using IO-Link 1.1 with COM3 communication for identification and diagnostic capabilities, while 10/100 Mbit/s Ethernet supports TCP/IP, PROFINET, and EtherNet/IP for parameter setting and data transmission, providing flexibility for different control-system designs
• Simplify installation and commissioning with a multifunction button or ifm Vision Assistant for flexible parameter-setting options, while two configurable PNP/NPN outputs and multiple triggering methods make it easier to adapt the camera to existing machine controls
