IO-Link enabled fork sensors use through-beam photoelectric technology to detect objects passing through the slot. They offer reliable object detection along with enhanced diagnostics and configuration data, providing advanced warnings of potential issues and remote, on-the-fly parameter changes.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}

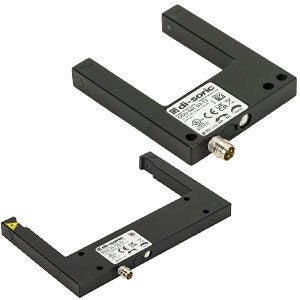

IO-Link Fork Sensors
di-soric U-frame fork sensors are designed for easy installation and feature a rugged one-piece, metal construction to assure constant alignment. These versatile sensors offer high resolution, sensitivity adjustment, and selectable light-on/dark-on operation. IO-Link capable fork sensors can also provide diagnostic, performance, and configuration data along with the detection signal.
- Fork openings from 5 to 250mm
- Visible red, infrared, and laser light options
- Standard, high-resolution, power, or speed sensor operating modes
- IO-Link v1.1 compatibility
- 10 to 30 VDC operating voltage
- Up to 14kHz switching frequency
- Sensitivity adjustment via potentiometer or IO-Link
- Rugged aluminum or die-cast zinc housings
- 3-pin M8 quick-disconnect
- IP67 protection rating
- Easily integrate IO-Link master modules, hubs, and their connected sensors/actuators with Productivity PLCs using task libraries available in the Productivity Suite programming software
Starting at
(OGU010G3-T3)
For part listing and specifications, go to Shop Now
