IO-Link Machine Mount Barcode Scanners
Industrial machine-mounted barcode scanners offer reliable 1D and 2D code reading. Features include high-resolution imaging with integrated illumination, IO-Link connectivity, and IP65-rated construction for automated identification and traceability applications.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
New!

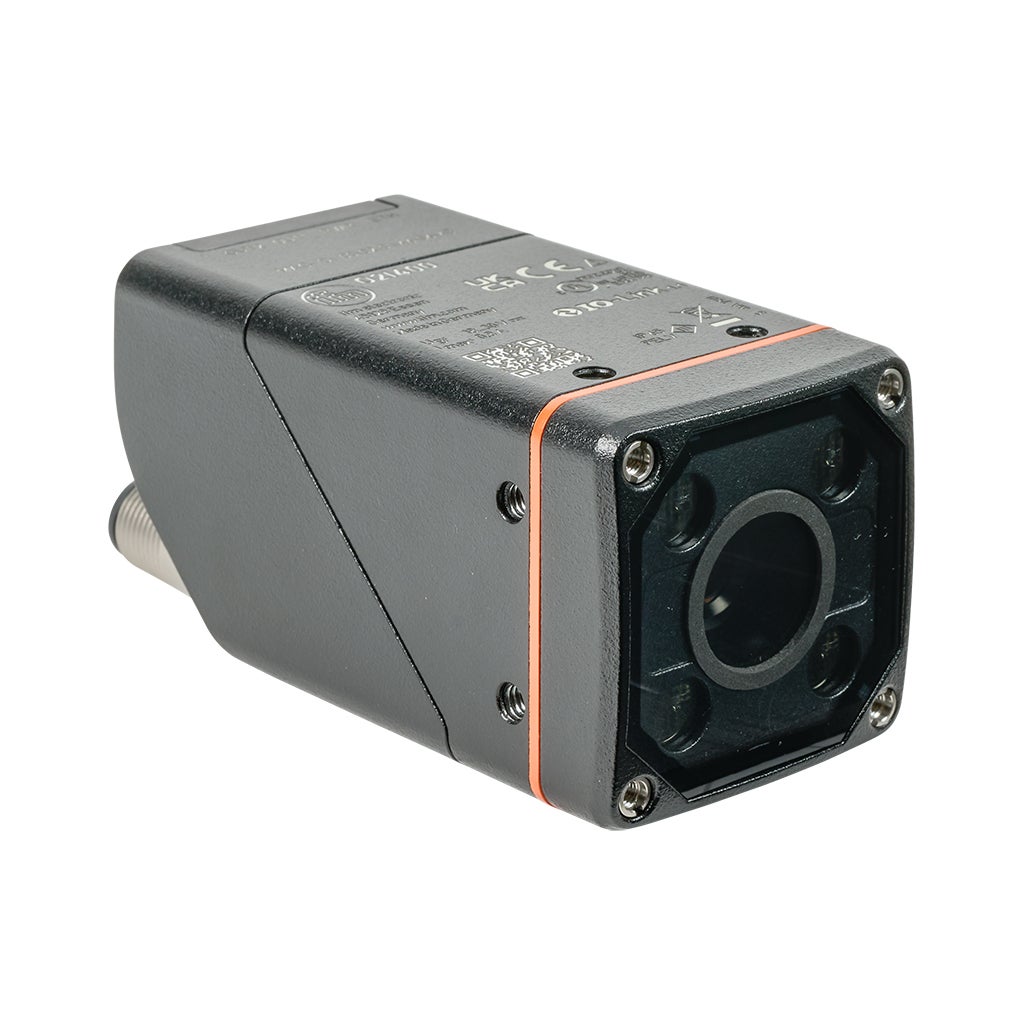

ifm efector O2I400 series machine mount barcode scanners combine high-speed 1D/2D code and text recognition with IO-Link connectivity for reliable data capture and seamless automation-system integration. Multiple lens and illumination options help match each unit to the application, while flexible triggering, configurable outputs, diagnostic capabilities, and ifm Vision Assistant software simplify integration and maintenance.
- Accommodates a wide range of mounting layouts, with standard-lens models providing fields of view up to 302 x 227mm and super-wide-angle models extending coverage to 739 x 555mm while operating at distances as close as 15mm
- Keeps pace with moving production with reading rates up to 40 Hz, object speeds up to 7m/s, omnidirectional reading, and code inclination up to 45° to help capture codes reliably even when products are moving or inconsistently oriented
- Simplifies control-system integration with IO-Link 1.1, COM3 communication, and a minimum 4.2ms process cycle for fast access to identification and diagnostic data, while Ethernet supports TCP/IP parameter setting
- Provides flexible machine-level interfacing with internal or external triggering and two configurable PNP/NPN digital outputs, making it easier to adapt the scanner to different machine-control requirements
Priced at
(O2I400)
For part listing and specifications, go to Shop Now
